Beschreibung

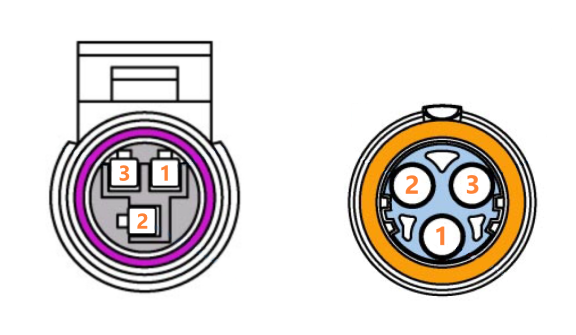

Sensor plug - AUX plug

Sensor to Aux .png

Pin	Description	Color	Section (mm²)
1	Output	Red	0.75
2	B-	Black	0.75
3	Input (Output only possible with Premium Gen3)	Yellow	0.75

Description

Color

Section (mm²)

Output

Red

0.75

B-

Black

0.75

Input

(Output only possible with Premium Gen3)

Yellow

0.75

INPUT AUX
Test points	Condition	Required value	Mesured value	Comments
1 - 2 Red - Black	Power ON	5V		Never connect the black wire to the vehicle's ground ! This 5V must only be used for a switch or sensor power Next steps : check for oxidation marks in the connectors check the continuity of the wires with ohmmeter (R<5Ω for correct operation)
3 - 2 Yellow - Black	-	Input signal		In general, switching voltage is 0V to 5V analogic (sensor), up to B+ (switch) For General Purpose Input use, the switching voltage depend of the configuration, and need to be checked in ECU setup Next steps : check for oxidation marks in the connectors check the switch or sensor connected check the continuity of the wires with ohmmeter (R<5Ω for correct operation)

INPUT AUX

Test points

Condition

Required value

Mesured value

Comments

1 - 2

Red - Black

Power ON

Never connect the black wire to the vehicle's ground !

This 5V must only be used for a switch or sensor power

Next steps :

3 - 2

Yellow - Black

Input signal

In general, switching voltage is 0V to 5V analogic (sensor), up to B+ (switch)

For General Purpose Input use, the switching voltage depend of the configuration, and need to be checked in ECU setup

Next steps :
