EB+ Soft Docking - System Layouts

SD sensors main 400px.jpg

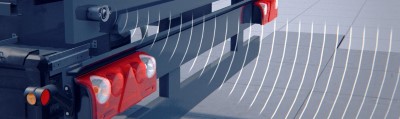

The system supports up to five ultrasonic sensors (US) on up to two different offset levels. The offset is set by DIAG+ per ECU cable outlet (channel).

The way how the sensors have to be connected is shown in the sample layouts.
