Variants
ILAS‑EP is available in multiple configurations to support a wide range of trailer concepts. Different versions are offered with four, six or seven ports, allowing direct connection to the air spring bellows and adapting to various system layouts. The valve is also available with different solenoid orientations, providing flexibility in installation depending on chassis constraints and available space.
Both 12 V and 24 V versions are available, ensuring compatibility with different vehicle electrical systems. All variants deliver the same functional performance, enabling consistent integration across applications. Other applications could be available on demand, see the Installation Guide.
| Part number | Replacement for | Solenoid orientation | Reservoir | Suspension | Suspension bellow | Lift bellow | Voltage |
|---|---|---|---|---|---|---|---|
| 352 094 011 | 352 061 101** 352 061 111 |
0° | M16x1,5 | M16x1,5 | M16x1,5 | M16x1,5 | 24v |
| 352 094 001 | 352 062 101** 352 062 111 |
0° | 1 x 8x1 | 1 x 8x1 | 1 x 8x1 | 1 x 8x1 | |
| 352 094 002 | 90° | ||||||
| 352 094 101 | 352 070 121 352 080 011 |
0° | 2 x 8x1 | 2 x 8x1 | |||
| 352 094 201 | 352 070 101** 352 070 111 352 080 001 |
0° | 2 x 8x1 | ||||
| 352 094 015 | 352 061 121* | 0° | M16x1,5 | M16x1,5 | M16x1,5 | M16x1,5 | 12V |
| 352 094 105 | 352 065 111* 352 080 031 |
0° | 1 x 8x1 | 1 x 8x1 | 2 x 8x1 | 2 x 8x1 | |
| 352 094 205 | 352 080 021 | 0° | 2 x 8x1 |
* Use RTCP008 plug for unsused ports
** If replacing a 3 pins version solenoid, new cable is required with DIN connector

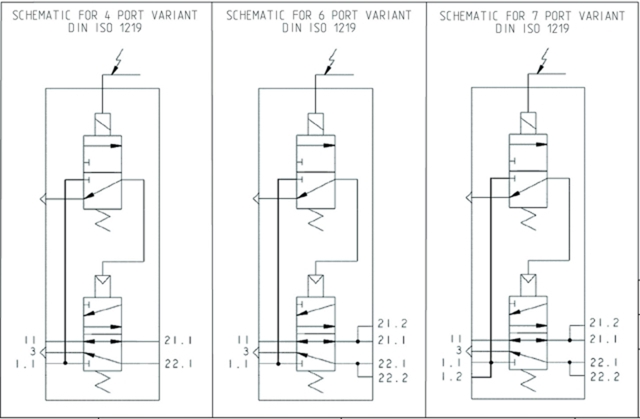

Symbol
