EL850 Compressor
Part no.
KN86020
item status
Active
Product line
Haldex

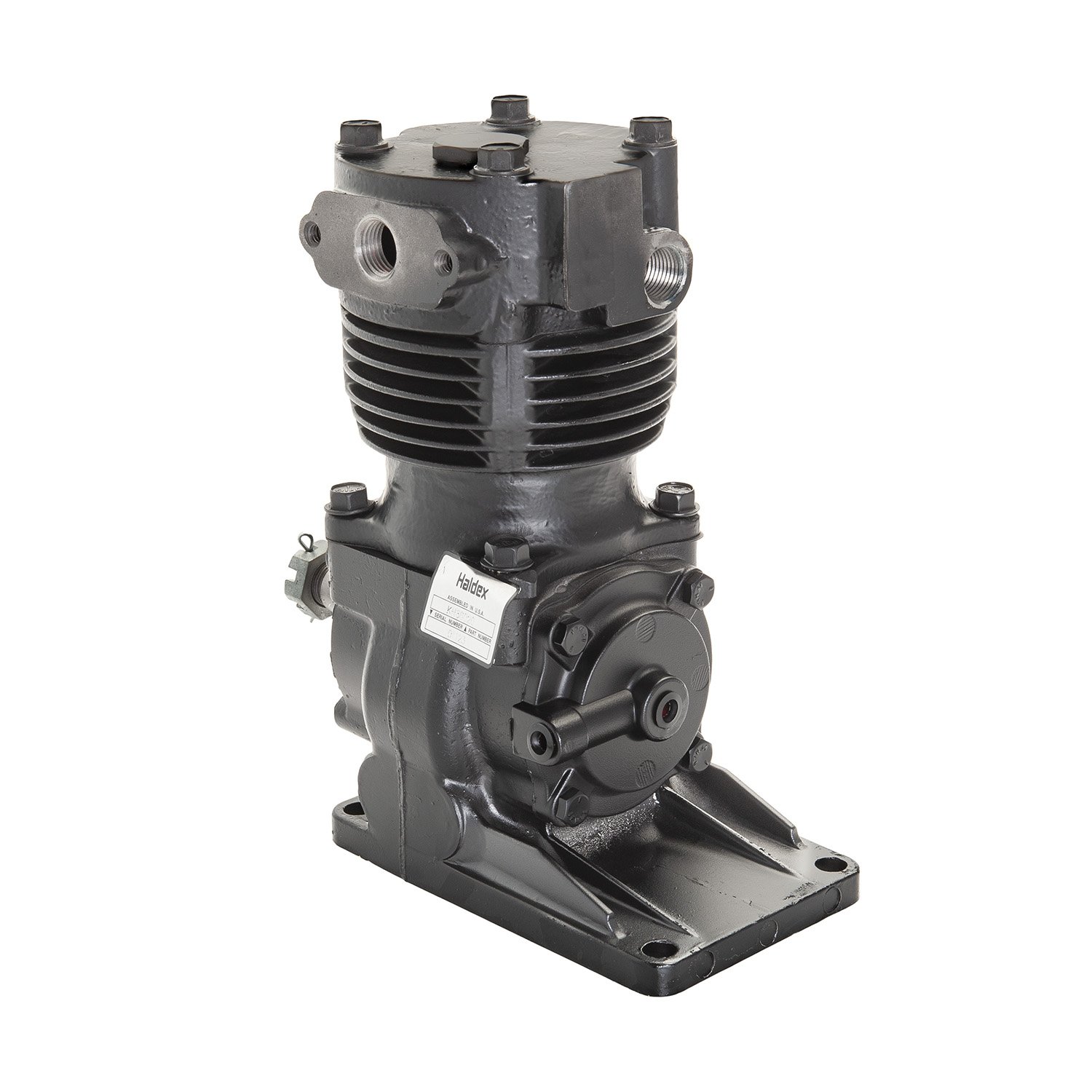

EL850 4-Hole Base Mount
- Belt Drive
- End Cap Oil Feed
- Base Oil Drain
- Overall Height: 11.00 in.
- Overall Width: 4.78 in.
- Overall Length: 10.08 in.
- External Shaft Length: 2.22 in.
- Approximate Weight: 24 lbs.
- Torque Nut to 80-100 ft. lbs.
- Changeover/Installation Instructions - L31043
- Service/Repair Instructions For Cylinder Head - L31059.
- Service Units are furnished without governors and manifolds and may require head rotation before installation or changeover.
- Thru-drive units must not exceed 65 ft. lbs. of transmitted torque.
- Include Installation Gaskets.
Availability
Call for Availability
Tel: 1-800-643-2374

Technical specs
Intake Manifold Position | Right |
Application | Water Cooled , Single Cylinder |
Discharge Type | Front-Threaded |
OEM Part Number | N7602 Exact Replacement |
Overall Height | 11.00 in |
Core Group | 850 |
Overall Width | 4.78 in. |
Overall Length | 10.08 in. |
External Shaft Length | 2.22 in. |
Bore Diameter | 3.15 in. |
Stroke | 1.50 in. |
Rated Displacement | 8.5 CFM @ 1250 RPM |
Approximate Weight | 24 lbs. |
Related aftermarket part(s)
Part No |
KN86020 - EL850 4-Hole Base Mount, Water Or Air Cooled
|
![]()
NT7602A - EL850 2-Hole Flange, Tapered Shaft, Water Or Air Cooled
|
![]()
KN86020 - EL850 4-Hole Base Mount, Water Or Air Cooled
|
![]()
102368BD - Compressor Gasket
![]()
E172004 - Compressor Gasket
![]()
102368BL - Compressor Gasket
![]()
102368BR - Compressor Gasket
![]()
E172005 - Compressor Gasket
![]()
EQ2620 - Rod Kit
![]()
EQ2621 - Rod Kit
![]()
EQ2622 - Rod Kit
![]()
EQ2630 - Bearing Kit
![]()
EQ2631 - Bearing Kit
![]()
EQ2632 - Bearing Kit
![]()
EQ2640 - Piston Kit
![]()
EQ2650 - Ring Kit
3X1327
![]()
RN26JG - Compressor Gasket Kit
![]()
RNT26JA - Head Repair Kit
![]()
RNT26JB - Unloader Kit
![]()
SN144R - Installation Kit
![]()
KNT17400 - Head Assembly
|
![]()
KN86020X - EL850 4-Hole Base Mount, Water Or Air Cooled
|
Related products
Part no.
102368BD
Connecting Rod and Bearing Kit - Standard
Notes
Notes
- Connecting Rod & Bearing - one only per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2620
Connecting Rod and Bearing Kit -.010 US
Notes
Notes
- Connecting Rod & Bearing - one only per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2621
Connecting Rod and Bearing Kit -.020 US
Notes
Notes
- Connecting Rod & Bearing - one only per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2622
Connecting Rod Bearing Kit - Standard
Notes
Notes
- Connecting Rod Bearing - one set per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2630
Connecting Rod Bearing Kit -.010 US
Notes
Notes
- Connecting Rod Bearing - one set per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2631
Connecting Rod Bearing Kit -.020 US
Notes
Notes
- Connecting Rod Bearing - one set per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Application.
Part no.
EQ2632
