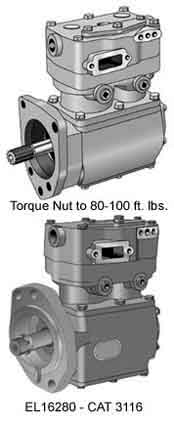

EL1600 3-Hole Flange

item status

Active (6)

Product line

Reman (4)

None (1)

Haldex (1)

Head Rotation

REMAN COMP CAT 1600

REMAN COMPRESSOR 1600 CAT

Right

Block Rotation

Right

External Shaft Length

1.85 in.

2.00 in.

2.45 in.

Application

Caterpillar 3116 Engine

Caterpillar 3406A Engines

Caterpillar 3406B Engine

Notes

Comes with Drive-Thru Adapter

High Capacity

High Capacity , Tapered Shaft , Threaded Mounting Holes

OEM Part Number

NT7212

NT7220 Exact Replacement

NT7228A

Core Group

1600

Overall Height

12.19 in.

Overall Width

5.44 in.

Overall Length

11.31 in.

Bore Diameter

2.75 in.

Stroke

1.87 in.

Rated Displacement

16.1 CFM @ 1250 RPM

Approximate Weight

45 lbs.
