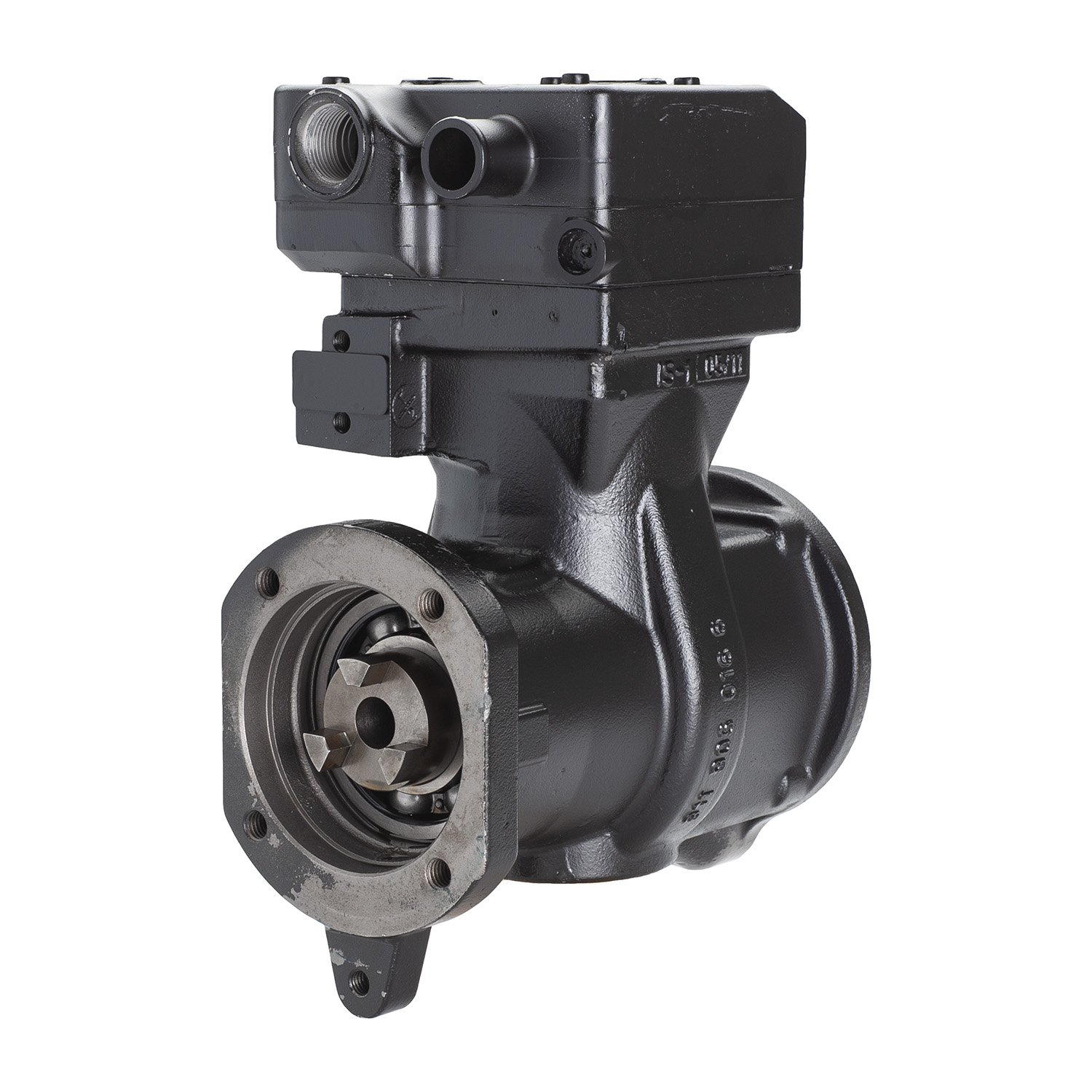

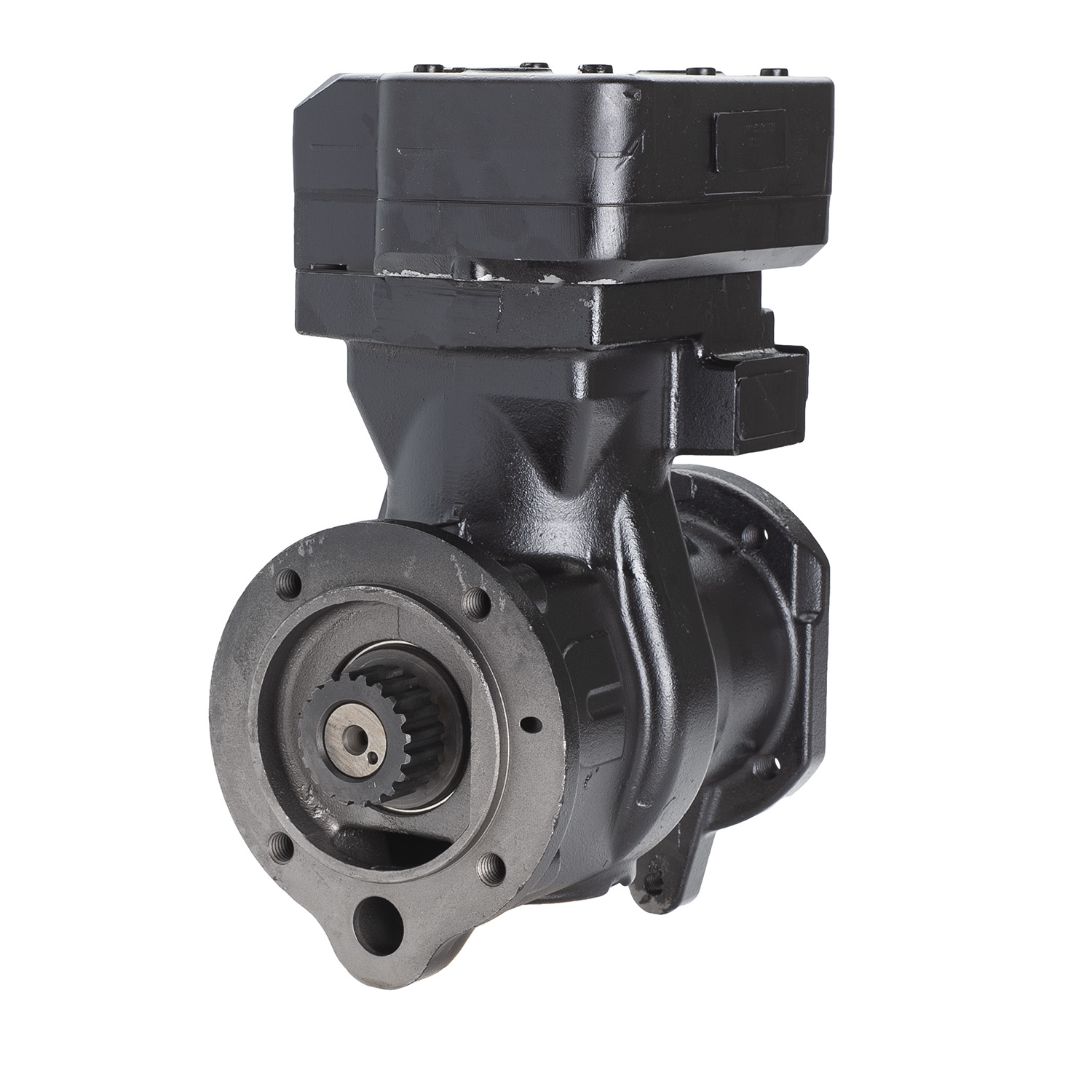

Reman. WABCO Air Compressor
9111535207X
Active
No
Reman
Cummins L, M, N
- 20 Tooth Spline Drive
- STOR - Straight Thread O-Ring
- Governor Mounts on Left when Viewed From Rear.
- WABCO 85mm Head Replacement Instructions - Web Only [L31272W] Feb-2011 go to http://www.haldex.com/North-America/Applications-Products/Literature/Brake--Suspension-Systems-Liter...
- Include installation gaskets
Bore Size | 85MM |
Cubic Feet Per Minute | 18.7 |
Water Port | 3/4" - 16 STOR |
Discharge Port | M27 - 2.0 STOR |
Thru-Drive | TANG |
Governor Port | M10 - 1.0 STOR |
Model | SS318 |
Head Assembly | 9111539202X |
Core Group | WAB1 |
