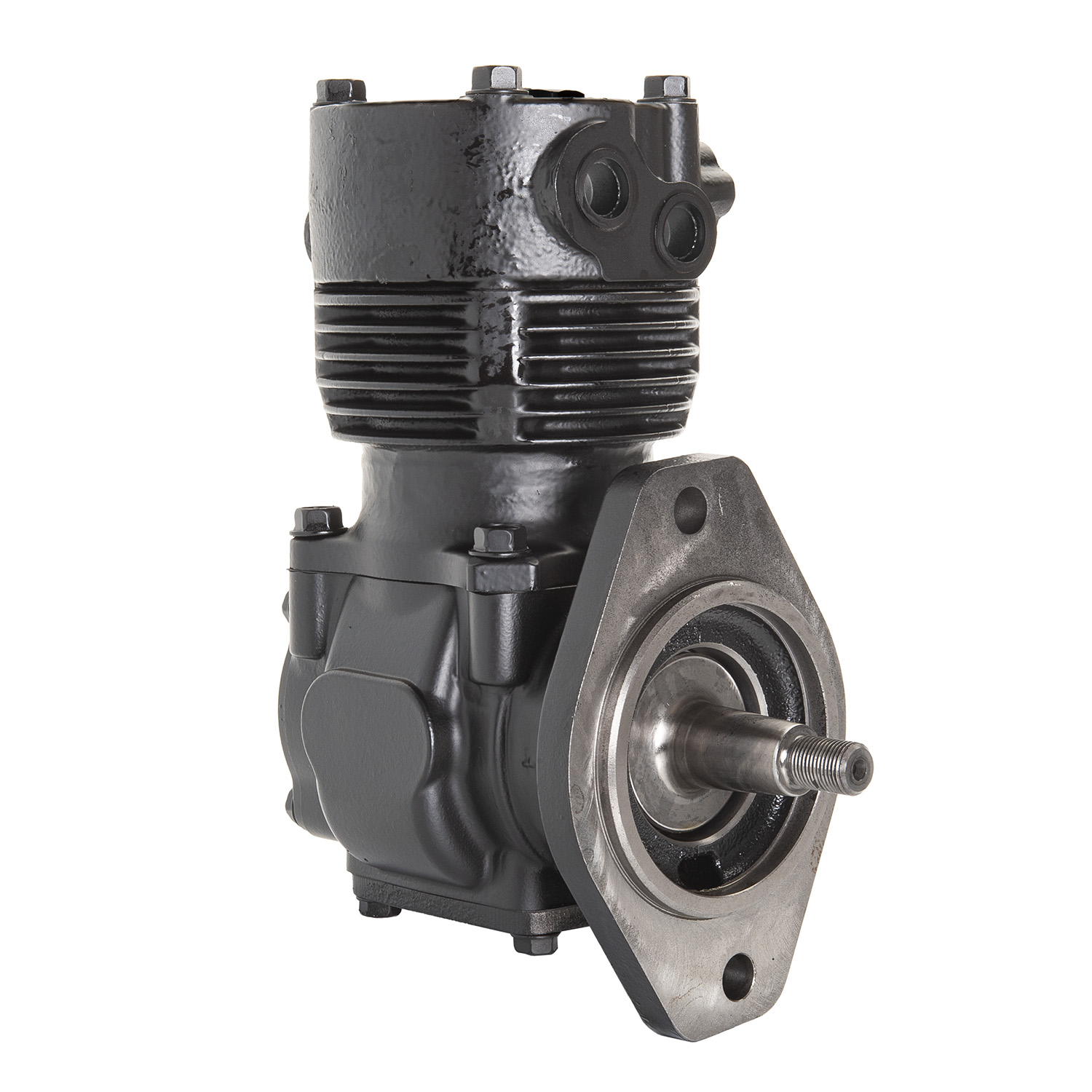

EL850 Compressor

Part no. KNT86230
item status Active
Product line Haldex
EL850 2-Hole Flange/Taper Shaft
  • Head Rotatable
  • Flange Mount, Gear Drive
  • Side Oil Feed, Thru-Drive Available
  • Front-Threaded Discharge Type
  • Base Oil Drain
  • Tapered shaft
  • Overall Height: 11.44 in.
  • Overall Width: 4.76 in.
  • Overall Length: 8.86 in.
  • External Shaft Length: 2.22 in.
  • Approximate Weight: 31 lbs.
Notes
  1. Installation Instructions For Cummins B&C Series Thru-Drive Conversion - L31078. Installation Instructions For Cummins B Series - L31105.
  2. Svc/Repair Instructions For Cylinder Head - L31059.
  3. Service Units are furnished without governors and manifolds and may require head rotation before installation or changeover.
  4. Thru-drive units must not exceed 65 ft. of transmitted torque.
  5. Service Units require the purchase of thru-drive kit SN3072BW for thru-drive applications.
  6. Include installation gaskets.
Availability
2 standard packs in stock
blobid0.png WARNING
Cancer and
Reproductive Harm
www.P65Warnings.ca.gov

Technical specs

Intake Manifold Position Right
Application Cummins Type B-Engines
Notes Turbocharged , Water Cooled
OEM Part Number NT7623 Exact Replacement
Overall Height 11.44 in.
Overall Width 4.76 in.
Overall Length 8.86 in.
External Shaft Length 2.22 in.
Bore Diameter 3.15 in.
Stroke 1.50 in.
Turbo-Charge Pressure 25 Max PSI
Rated Displacement 8.5 CFM @ 1250 RPM
Approximate Weight 31 lbs.
