EL1300 DDC Compressor - replacement for KN7070X and KN7080X
Part no.
EL13050X
item status
Active
Product line
Reman
Reman. Detroit Diesel 0°
- Head Rotatable
- Flange Mount, Gear Drive
- End Cap Oil Feed
- Oil Drain Internal at Flange
- Water Cooled
- Top/Flange Discharge Type
- Overall Height: 12.00 in.
- Overall Width: 6.84 in.
- Overall Length: 10.45 in.
- External Shaft Length: .19 in.
- Approximate Weight: 50 lbs.
- Orientation viewed from front.
- EL13050/EL16050 Changeover/Installation Instructions: L31028.
- Service units are furnished without governors and manifolds and may require head rotation and end cap rotation before installation or changeover. Service and Remanufactured units have a 1 inch oil drain port with no threads.
- Thru-drive units must not exceed 65 ft. lbs. of transmitted torque.
- Typical - Torque Nut to 80-100 ft. lbs.

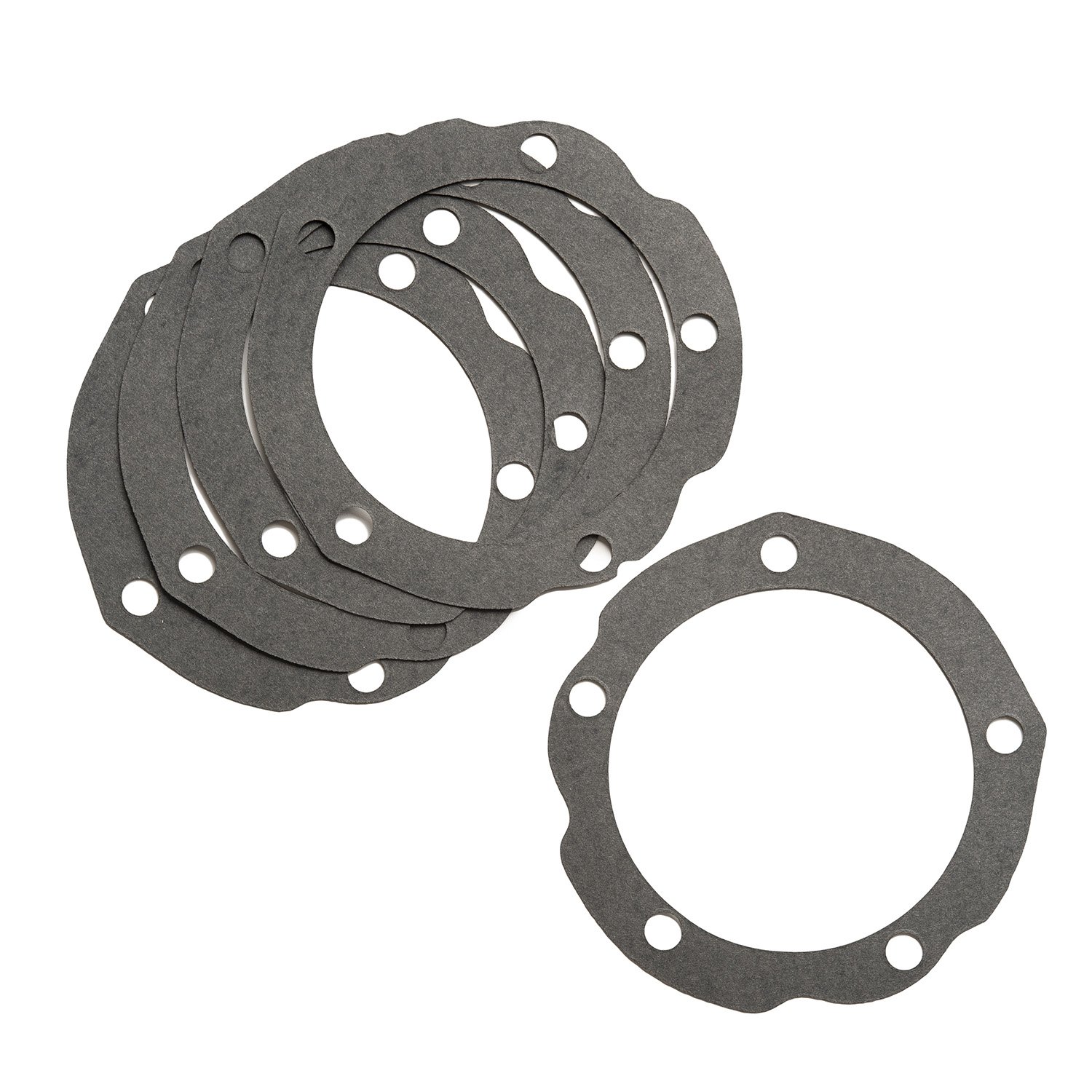

- Include Installation Gaskets.
Availability
Call for Availability
Tel: 1-800-643-2374

Technical specs
Head Rotation | Right |
Block Rotation | Right |
Application | DDC 0° Tilt Engines |
Notes | Substitution for KN7070X and KN7080X; , must rotate head for KN7080X. |
OEM Part Number | N7005H |
Core Group | 1300 |
Overall Height | 12.00 in. |
Overall Width | 6.84 in. |
Overall Length | 10.45 in. |
External Shaft Length | .19 in. |
Bore Diameter | 2.75 in. |
Stroke | 1.50 in. |
Rated Displacement | 13.0 CFM @ 1250 RPM |
Approximate Weight | 50 lbs. |
Related products
Part no.
RN26GY
Part no.
SN144C
Connecting Rod and Bearing Kit - Standard
Notes
Notes
- Connecting Rod & Bearing - one only per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2620
Connecting Rod and Bearing Kit -.010 US
Notes
Notes
- Connecting Rod & Bearing - one only per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2621
Connecting Rod and Bearing Kit -.020 US
Notes
Notes
- Connecting Rod & Bearing - one only per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2622
Connecting Rod Bearing Kit - Standard
Notes
Notes
- Connecting Rod Bearing - one set per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2630
Connecting Rod Bearing Kit -.010 US
Notes
Notes
- Connecting Rod Bearing - one set per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Applications.
Part no.
EQ2631
Connecting Rod Bearing Kit -.020 US
Notes
Notes
- Connecting Rod Bearing - one set per kit.
- For EL850/EL1300/EL1600/EL3200 Compressor Application.
Part no.
EQ2632
Unloader Kit for EL1300/EL1600/EL3200 Compressors
Notes Comes with unloader gasket
Notes Comes with unloader gasket
- Two kits required for EL3200 Compressors.
Part no.
RNT26A
