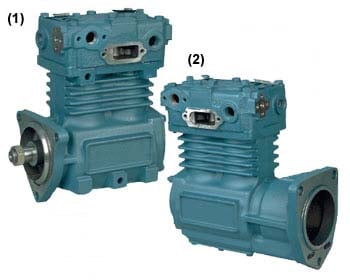

Bendix® TF550/TF750

TF750 Flange Mount - Mack Extended Flange

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. EL16111 and EL16111X Compressors may also be used for this application.
3. Include Installation Gaskets.

TF550 Flange Mount - Mack Extended Flange

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. EL13111 and EL13111X Compressors may also be used for this application.
3. Include Installation Gaskets.

TF550 Flange Mount - Mack Extended Flange

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. Include Installation Gaskets

TF750 Flange Mount - Mack Extended Flange

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. Include Installation Gaskets.

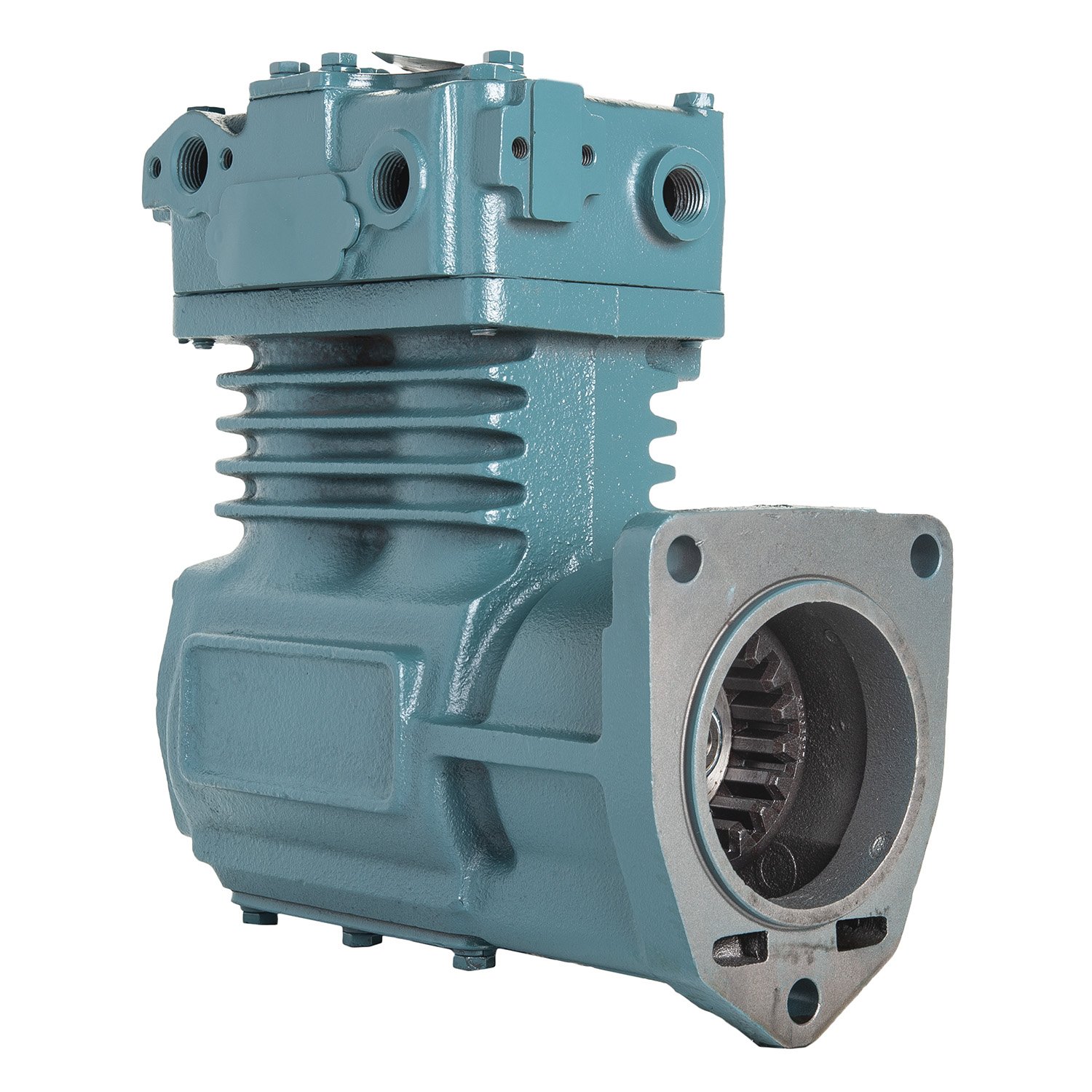

TF550 Flange Mount with Gear - ETECH Mack

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. Include Installation Gaskets

TF550 Flange Mount - ETECH Mack

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. Include Installation Gaskets

TF750 Flange Mount with Gear - ETECH Mack

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. Include Installation Gaskets.

TF750 Flange Mount - ETECH Mack

• Engine Drive
• Water and Air Cooled
• Discharge Type - Optional Top or Right

Notes

1. Port orientation viewed from rear.
2. Include Installation Gaskets
3. Crankshaft Nut 100 - 120 ft. lbs
