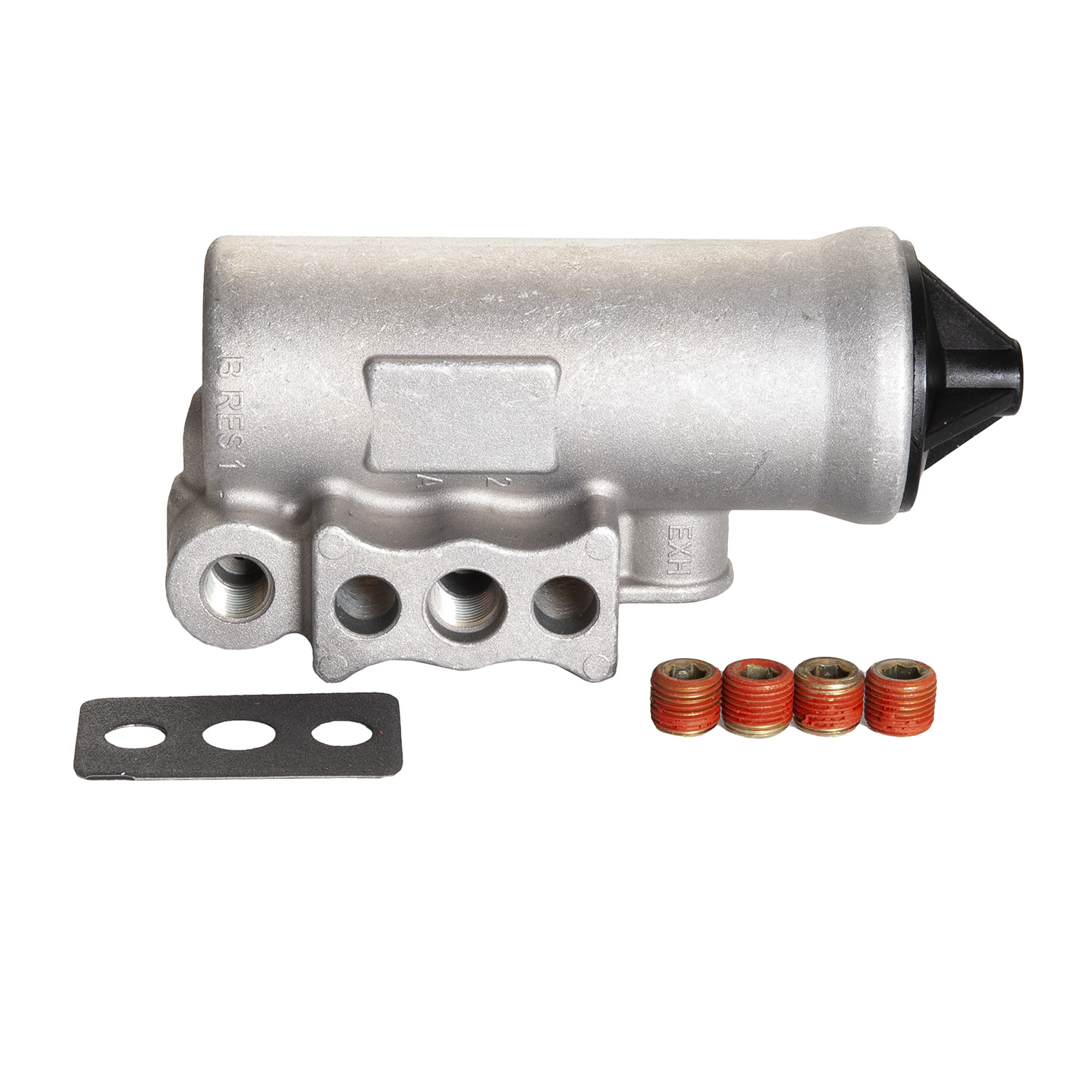

Piston Type

Governor

Part no. KN18536
item status Active
Product line Haldex
Piston Type Governor - 6 pack of KN18530
  • Operates in conjunction with the compressor unloading mechanism.
  • Automatically controls the air pressure in the air supply system between the desired predetermined maximum and minimum pressures.
  • Direct compressor or remote mount.
  • 1/8-27 NPT ports. (Unless Noted)
  • .336 diameter mounting holes.
  • Approximate weight 1 lb. 1 oz.
Notes
  1. Service Kit use part number RN32W.
Availability
227 in stock
Where to buy Distributors & Service Centers
blobid0.png WARNING
Cancer and
Reproductive Harm
www.P65Warnings.ca.gov

Technical specs

Cut-In Pressure 105 PSI Nominal
Cut-Out Pressure 130 PSI Nominal
Adjustable Yes
OEM Part Number N30190A
Port Thread Size 1/8-27 NPT (Unless Noted)
Mounting Holes .336 diameter
Approximate Weight 1 lb.

Documents

L20706.pdf
Bulletin | WABCO 85mm Compressor Bulletin 3-2012
English 558 kB
L55384.pdf
Bulletin | Tech Tip E-QE Type Compressors
English 272 kB
L55482W.pdf
Bulletin | C15 Compressor Intake Line Replacement 10-14
English 200 kB
L55502.pdf
Bulletin | Compressor Cancellations 1-16
English 1670 kB
L00118.pdf
Catalog | Catalog - Compressors
English 15454 kB
L90343.pdf
Form | Compressor Warning Tag 2-09
English 25 kB
L31025W.pdf
Instruction Sheets | Compressor Changeover Instructions for EL13040-EL16040
English 292 kB
L31026W.pdf
Instruction Sheets | Compressor Changeover Instructions for EL13040-EL16040
English 1190 kB
L31027W.pdf
Instruction Sheets | Compressor Changeover EL13040-EL16040 from Bendix Long Cummins Long or Haldex EL1213X on 6 Cylinder Engines (web only)
English 349 kB
L31030W.pdf
Instruction Sheets | Compressor Changeover EL13060-EL16060 from 4-Hole or 6-Hole Base Mount Water Cooled (web only)
English 385 kB
L31035W.pdf
Instruction Sheets | Compressor Changeover EL13111-EL16111 from Bendix Mack Inline 6 Cylinder to Haldex (web only)
English 583 kB
L31036W.pdf
Instruction Sheets | Compressor Changeover EL13020-EL16120 from Bendix for Cat Mount 3406 Spline Shaft to Haldex (web only)
English 345 kB
L31037W.pdf
Instruction Sheets | Compressor Changeover EL13151 from Bendix for Cat Mount 3306 Flange to Haldex (web only)
English 337 kB
L31040W.pdf
Instruction Sheets | Compessor Changeover EL13020-EL16020 from 4-Hole or 6-Hole Base Mount Water Cooled for CAT Mount (web only)
English 682 kB
L31043W.pdf
Instruction Sheets | Compressor Installation EL850 Single Cylinder 4-Hole Base (web only)
English 508 kB
L31050W.pdf
Instruction Sheets | Compressor Installation EL13220-EL13220X Cummins C Series (web only)
English 731 kB
L31059W.pdf
Instruction Sheets | EL850 Cylinder Heads Service Repair (web only)
English 396 kB
L31061.pdf
Instruction Sheets | Piston Type Governor KN18530 Series Instructions 4-06
English 86 kB
L31069W.pdf
Instruction Sheets | Compressor Changeover EL13300 for Flange Mount for CAT 3176 Engines (web only)
English 340 kB
L31105W.pdf
Instruction Sheets | Compressor Installation Cummins B Series (web only)
English 402 kB
L31106W.pdf
Instruction Sheets | Compressor Changeover EL13053-EL16053 from Detroit Diesel Series 60 to Haldex (web only)
English 365 kB
L31271W.pdf
Instruction Sheets | 75mm WABCO Head Replacement Instructions 10-11
English 57 kB
L31272W.pdf
Instruction Sheets | 85mm WABCO Head Replacement Instructions 10-11
English 62 kB
L31278.pdf
Instruction Sheets | EL365 Compressor Installation Instructions
English 357 kB
L20453W.pdf
Tech. Information | Cummins Reman Fleet App Guide 8-12
English 1031 kB
