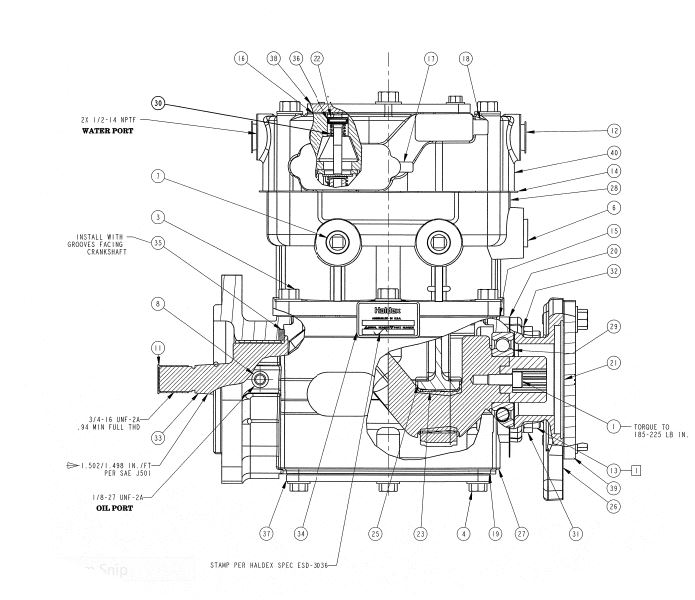

EL1600 3-Hole Flange

Part no. EL16280X
item status Active
3-Hole Flange Mount

  • Flange Mount, Gear Drive
  • End Cap Oil Feed
  • Flange Oil Drain
  • Water Cooled
  • Top/Flange Discharge Type
  • Overall Height: 12.19 in
  • Overall Width: 5.44 in.
  • Overall Length: 11.31 in.
  • Approximate Weight 45 lbs.
Notes
  1. Service units are furnished without governors and manifolds and may require head rotation and end cap rotation before installation or changeover.
  2. Torque Nut to 80-100 ft. lb
  3. Include installation gaskets
Availability
Call for Availability Tel: 1-800-643-2374
blobid0.png WARNING
Cancer and
Reproductive Harm
www.P65Warnings.ca.gov

Technical specs

Head Rotation Right
Block Rotation Right
External Shaft Length 1.85 in.
Application Caterpillar 3116 Engine
Notes Comes with Drive-Thru Adapter
OEM Part Number NT7228A
Core Group 1600
Overall Height 12.19 in.
Overall Width 5.44 in.
Overall Length 11.31 in.
Bore Diameter 2.75 in.
Stroke 1.87 in.
Rated Displacement 16.1 CFM @ 1250 RPM
Approximate Weight 45 lbs.
