Backup power and control input (Super AUX) cable connecting into the lighting system
Default cable in the case where e.g. a lift axle or a steer axle is installed and traction support from cab and/or locking during reversing is needed, cable supports additional connection of a trailer mounted switch by bayonet connector
Super AUX control inputs (3) can be linked by software setup to all AUX functions, refer to DIAG+ AUX setup
Notice also Super AUX sample installations in the AUX schematic database
Lighting system must provide a corresponding connector
Conforms to IP67 (BS EN 60529) when mated with EB+ ECU Super AUX port (GEN2 / GEN3 )
Cable material: PVC, ADR approved
ECU connector: black
Lighting system bayonet connector: DIN 72585, ISO 15170-B1-4.1-Sn/K1
Switch bayonet connector: DIN 72585, ISO 15170-B1-2.1-Sn/K1
Operating voltage: 12 - 24V
Operating temperature: -40°C to +70°C

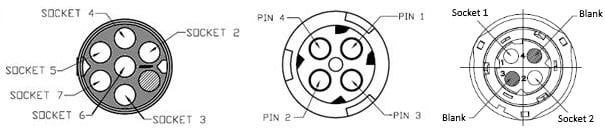

Connector (Top View)

Cable
