AUX to pressure sensor
Find here extended description, connector views, and help for diagnostic as well !

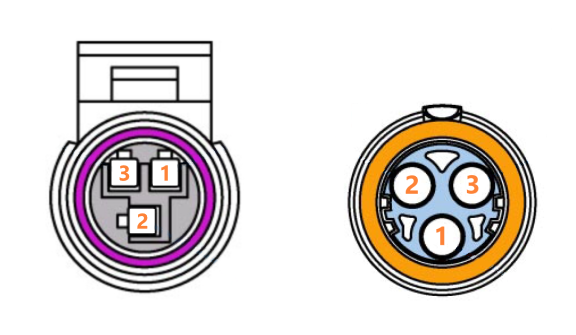

Sensor plug - AUX plug
|
Pin |
Description |
Color |
Section (mm2) |
|
1 |
Output |
Red |
0.75 |
|
2 |
B- |
Black |
0.75 |
|
3 |
Input |
Yellow |
0.75 |
Diagnostic
|
INPUT AUX |
||||
|
Test points |
Condition |
Required value |
Mesured value |
Comments |
|
1 - 2 Red - Black |
Power ON |
5V |
Never connect the black wire to the vehicle's ground ! This 5V is used for sensor power Next steps :
|
|
|
3 - 2 Yellow - Black |
- |
Input signal |
Input signal compatible with ECU setup is 0 to 5V analogic For General Purpose Input use, the switching voltage depend of the configuration, and need to be checked in ECU setup Next steps :
|
|
