Brake Components

It's not a kind of magic. Between the brake pedal and the brakes of the trailers, there are multiple braking system design possibilities.

Even if the Electronic Braking Systems strongly reduce the number of valves in the chassis, and until the air braking system is installed, there will be a need for pneumatic valves. Find here technical descriptions and variants of the most common ones.

Provide clean air to the trailer

Ensure a clean and reliable pneumatic connection between truck and trailer.

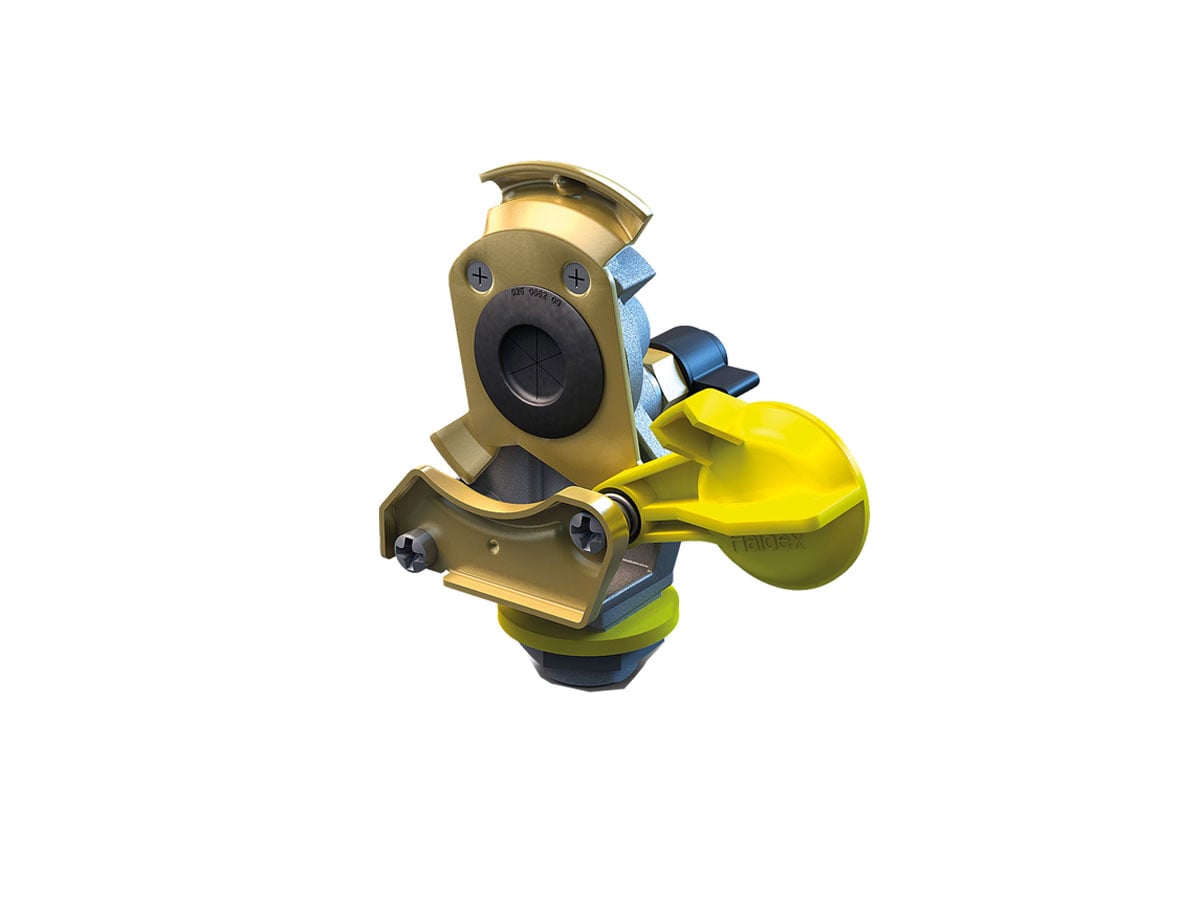

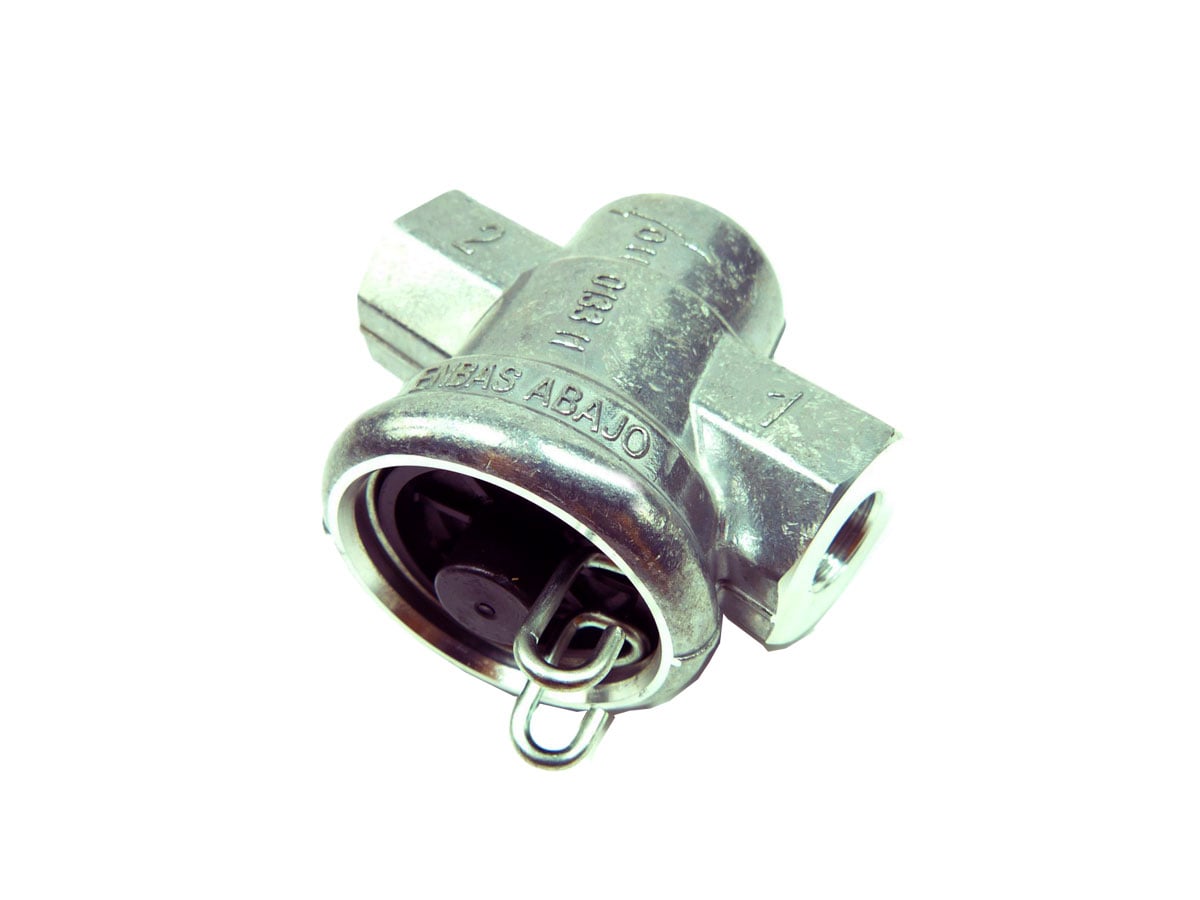

Coupling heads provide the pneumatic connection between truck and trailer and are available with or without integrated filters. When the trailer is parked, dummy couplings help keep the connections clean and protected from contamination. For demanding operating conditions, separate line filters provide easier access for inspection and cleaning.

Adapt the brake force according to the axle load

Adjust braking performance according to the actual trailer load.

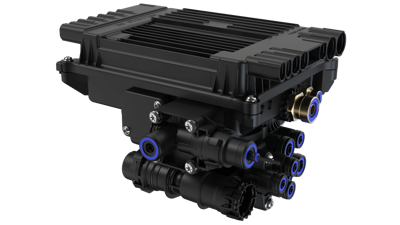

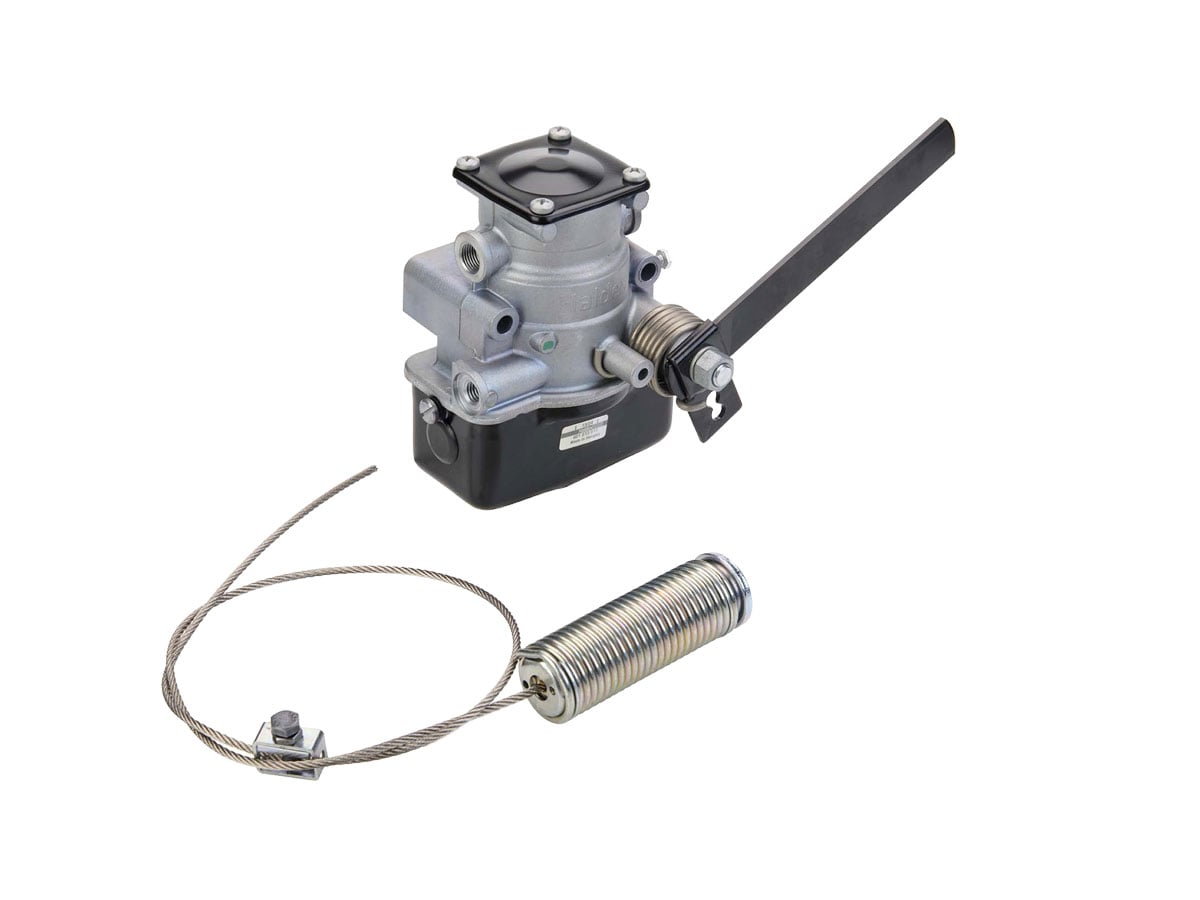

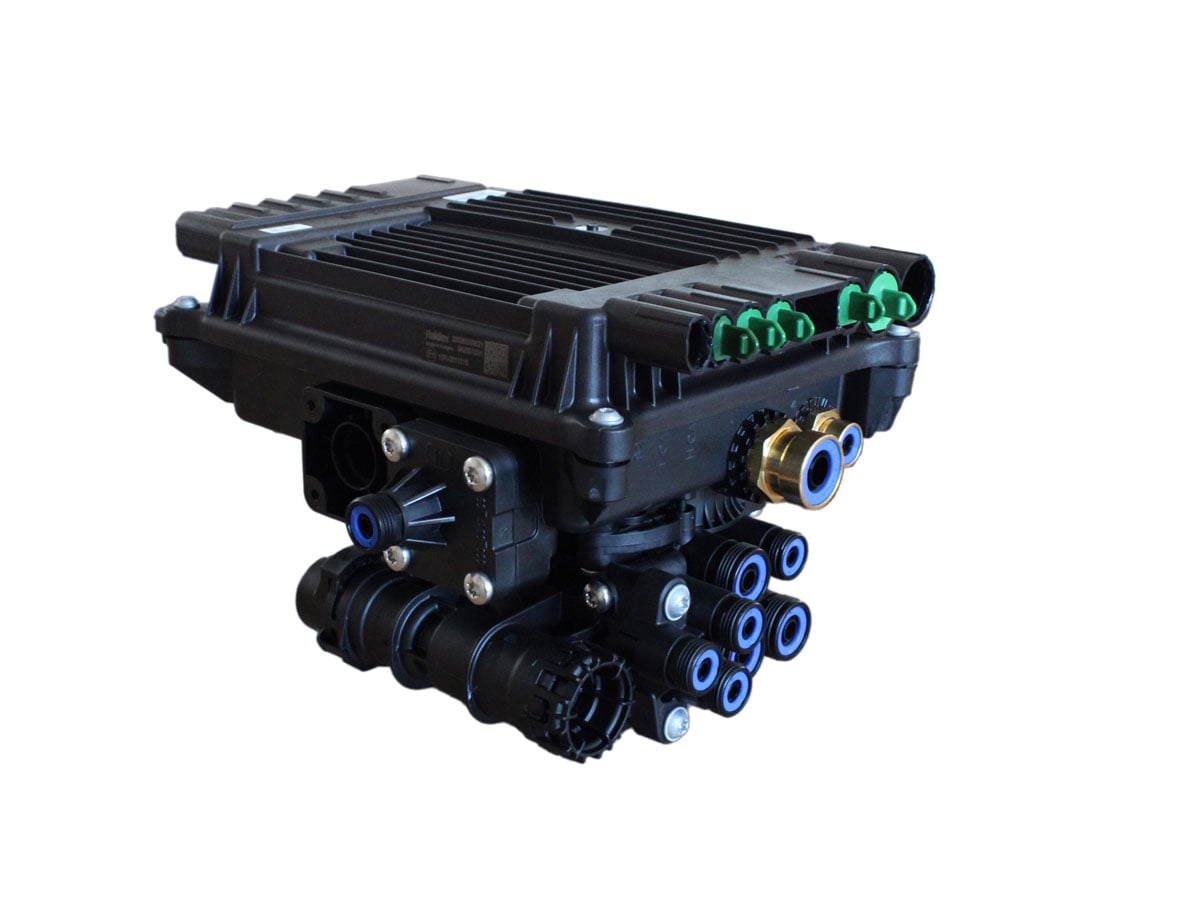

Different load sensing solutions are available depending on the vehicle design. Light Laden valves allow manual adjustment. Load Sensing Valves adapt braking performance automatically. EB+ 4.0 integrates an electronic load sensing function that reduces installation and setup time.

Anti-lock function

Prevent wheel lock-up and maintain vehicle control during braking.

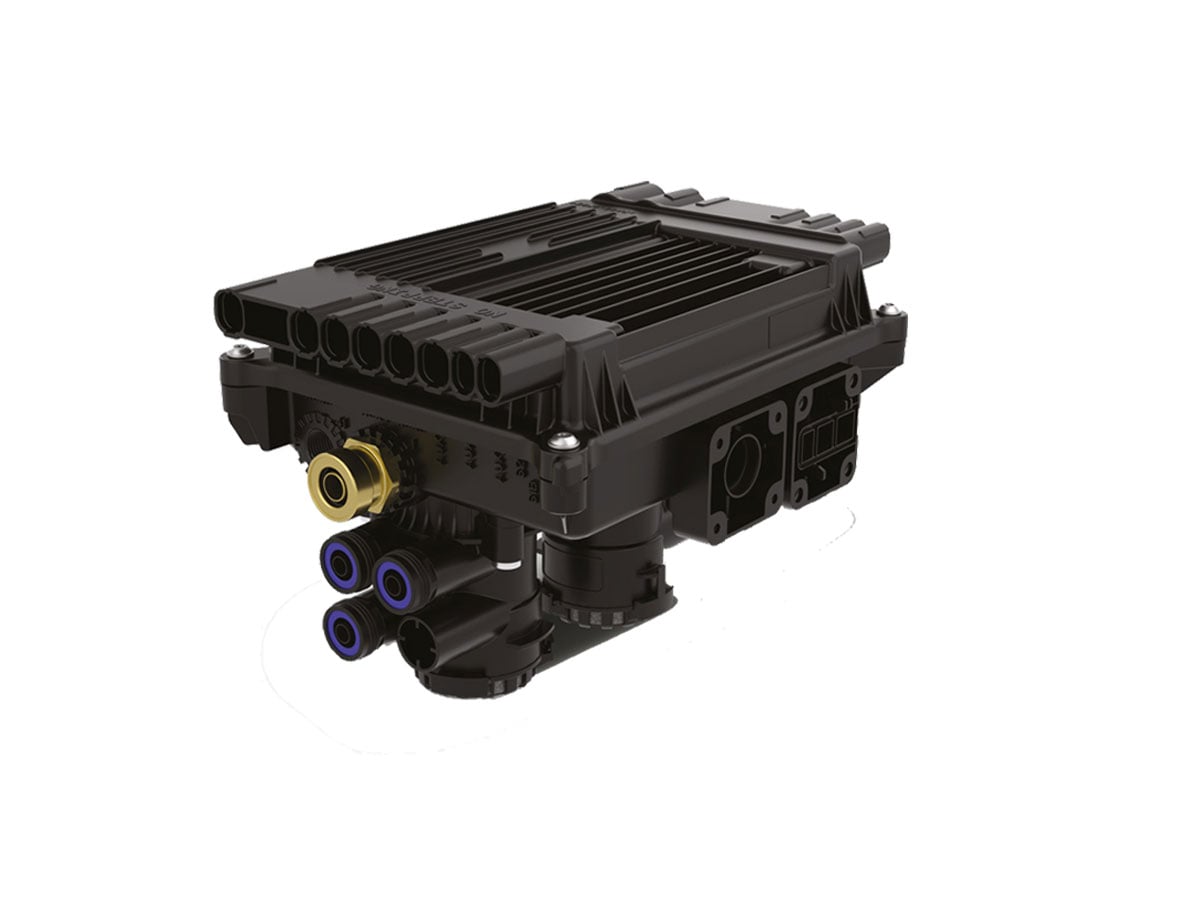

ABS 4.0 provides an R13-compliant anti-lock braking solution. EB+ 4.0 also fulfils ABS requirements while offering additional functionalities.

Park brake control

Safely immobilise the trailer when parked.

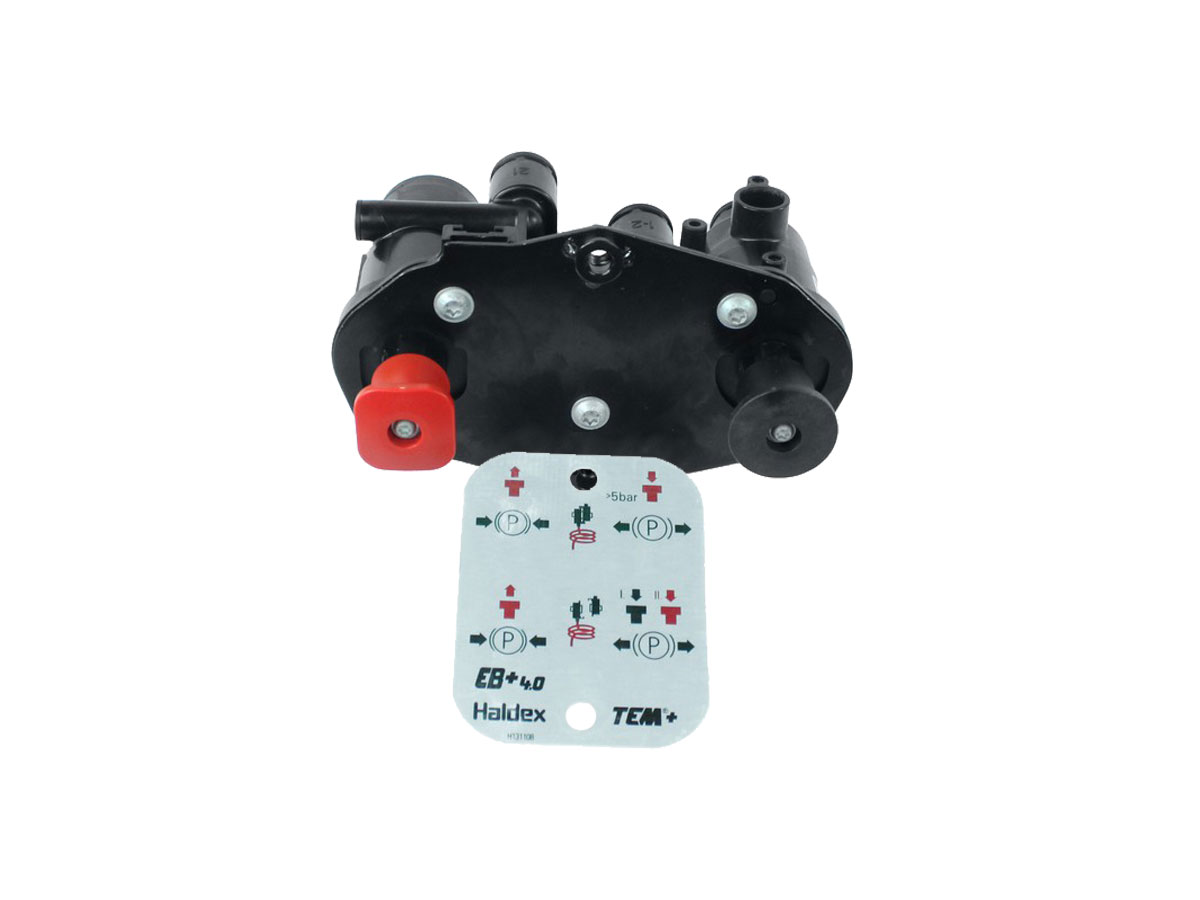

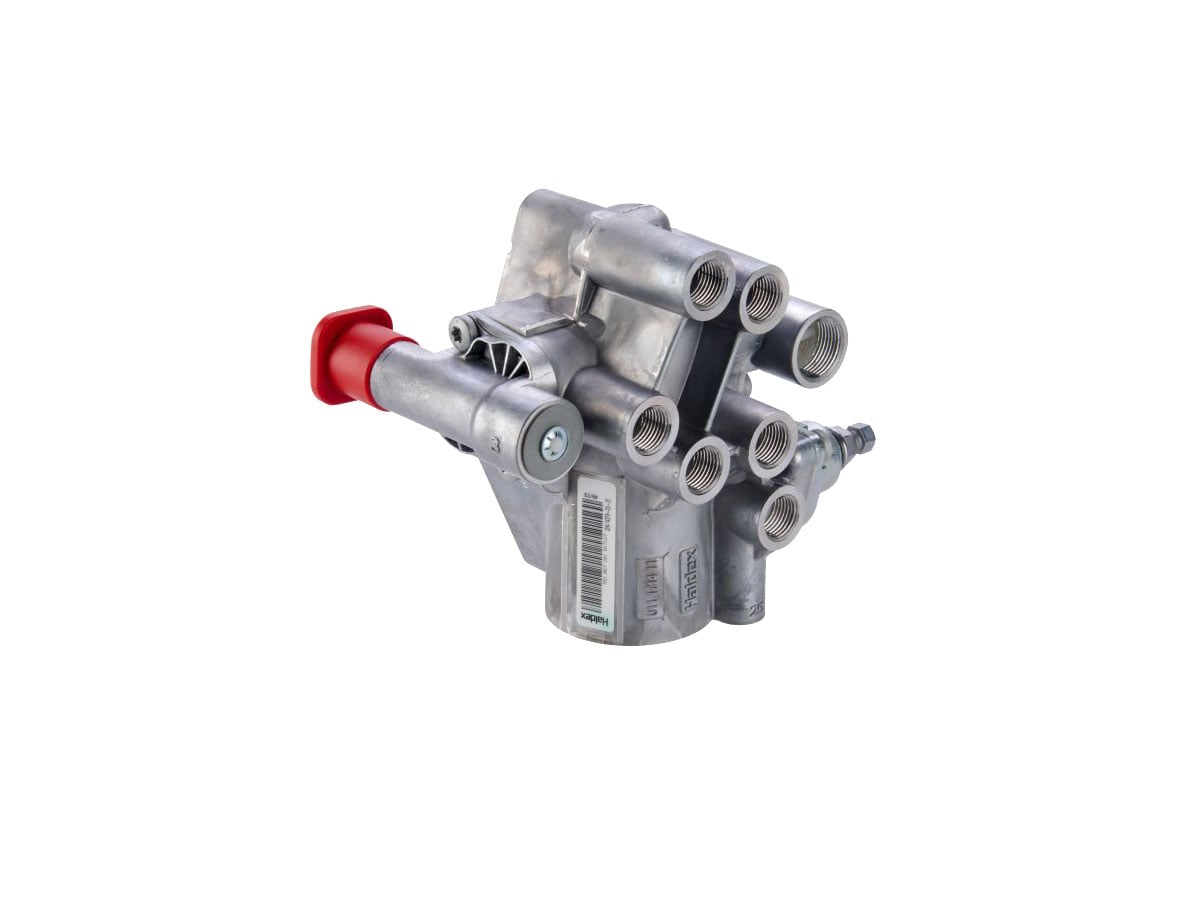

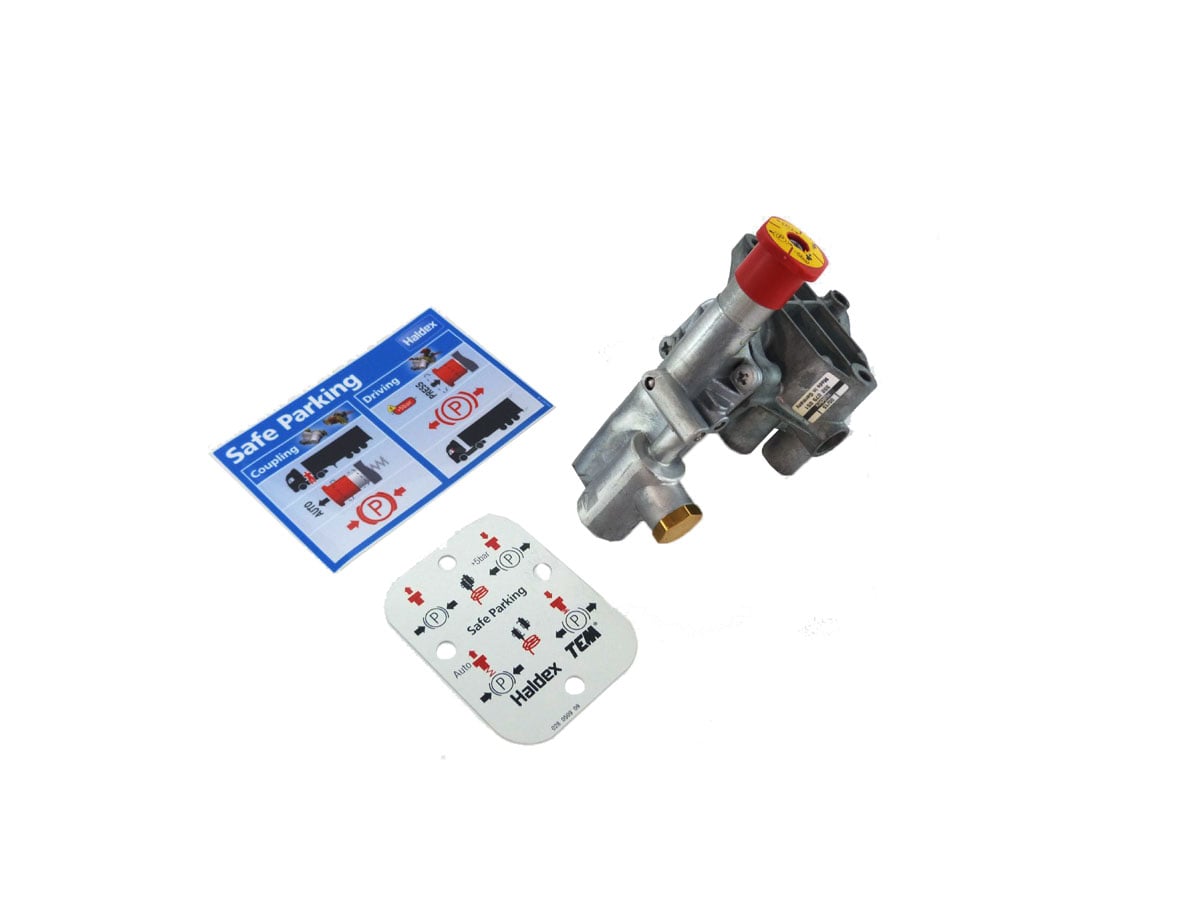

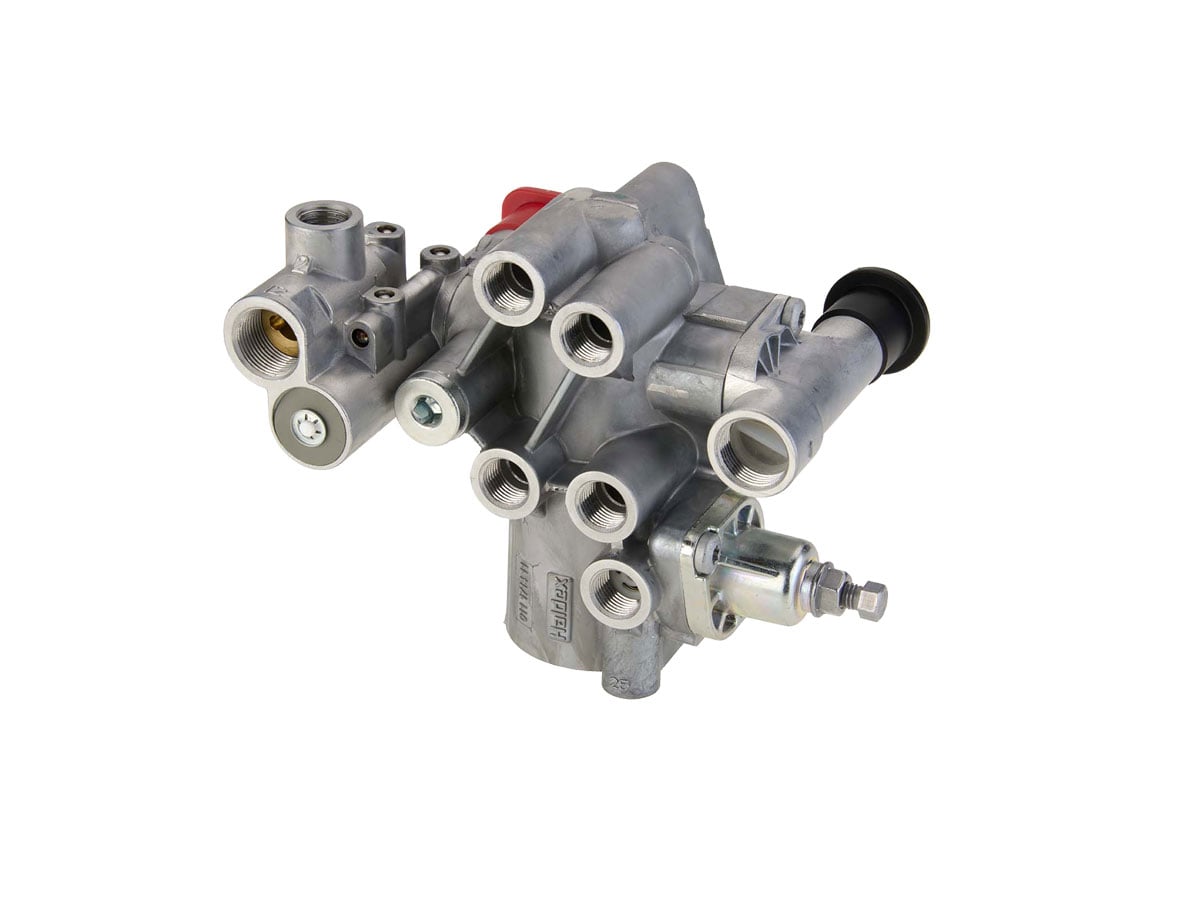

Park & Shunt valves, TrCM, TrCM+, TEM and TEM+ provide dedicated parking brake control solutions.

Speed up the braking signal

Reduce braking response time throughout the pneumatic system.

Relay valves can accelerate the braking signal and increase airflow. EB+ 4.0 improves responsiveness through electronic signal processing.

Secure the braking system

Protect the pneumatic system and ensure safe operation.

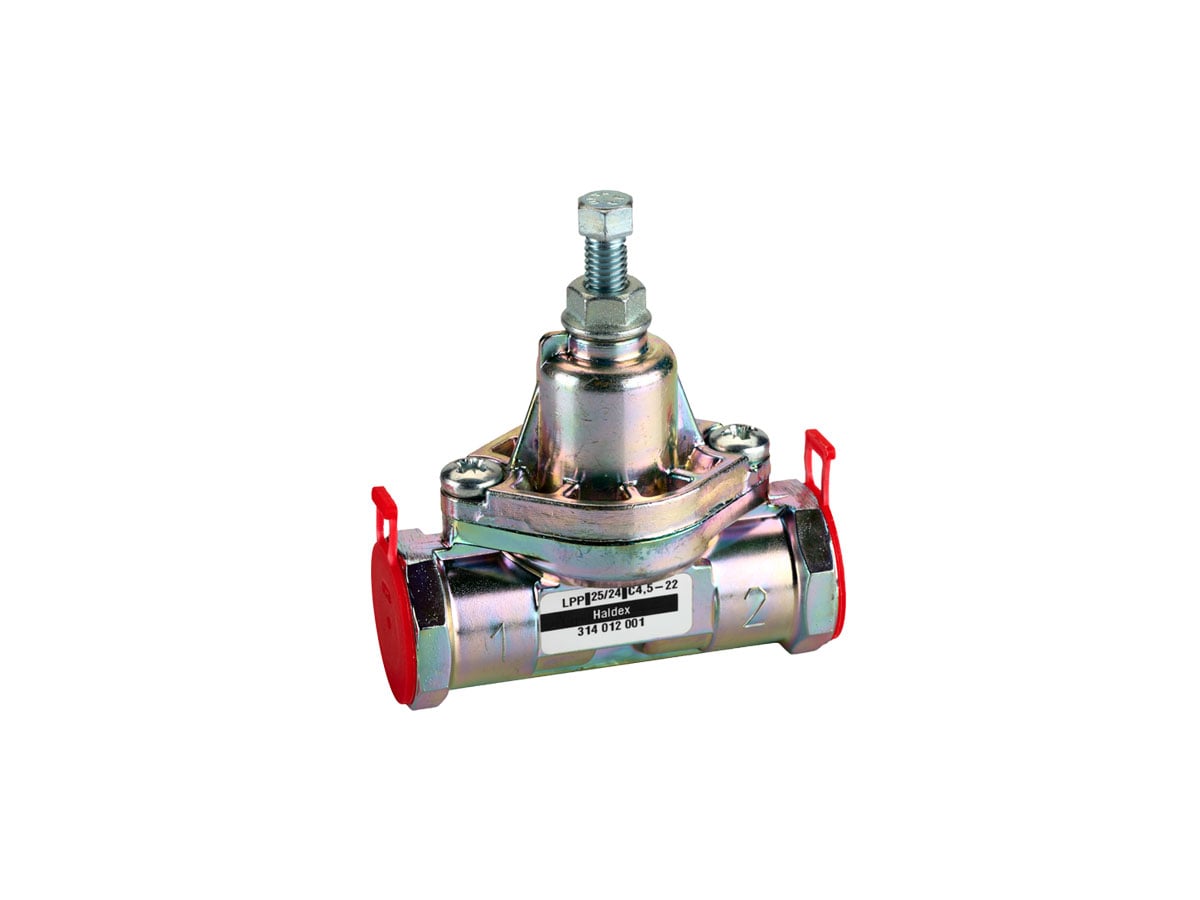

Protection valves help secure the pneumatic installation and maintain safe operation. This function is also integrated into TrCM, TrCM+, TEM and TEM+ solutions.

Control and secure trailer operations

Manage trailer brake operation during manoeuvring and daily use.

Park & Shunt valves, TrCM, TrCM+, TEM and TEM+ are designed to control trailer brake functions during operation.

Park brake control

Safely immobilise the trailer when parked.

Park & Shunt valves, TrCM, TrCM+, TEM and TEM+ provide dedicated parking brake control solutions.
