Super Aux Cable DIN
- Backup power and control input cable connecting into the lightning system
- Control inputs (2) can be linked to EB+ AUX functions, refer to DIAG+ AUX Setup!
- Notice also Super AUX sample installations in the AUX schematic database!
- Standard cable in case where e.g. a lift axle or a steer axle is installed and traction from cab and locking during reversing is needed, this cable will be used if no trailer switch is required
- Lightning system must provide a corresponding connector.
- Conforms to IP67 (BS EN 60529) when mated with EB+ ECU Super Aux Port (GEN2 / GEN3 )
- Cable material: PVC, ADR approved
- ECU Connector: black
- Bayonet Connector: DIN 72585, ISO 15170-B1-4.1-Sn/K1
- Operating voltage: 24V
- Operating temperature: -40°C to +70°C

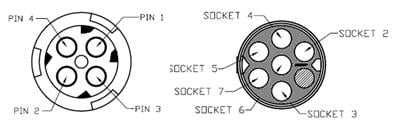

Connector (Top View)
Cable
| ECU Connector Socket |
DIN Connector Pin |
Function | Wire colour | mm² |
| 1 | - | |||
| 2 | 1 | B + / Stop light Input | Red | 1.5 |
| 3 | - | |||
| 4 | - | |||
| 5 | 4 | Super AUX B Input | Brown | 1.5 |
| 6 | 2 | B - Input | White | 1.5 |
| 7 | 3 | Super AUX A Input | Yellow | 1.5 |
