Herramientas de diagnóstico para los sistemas EB+ y U-ABS

Kit No.	Description	Part No.	Item	Comment
950 800 912	Black Tool Box	042623719	Black Tool Box

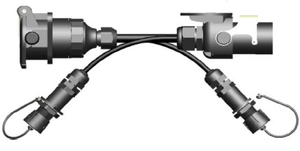

		815018001	ISO 7638 Interface Assembly	For semi and full-trailer diagnostics, required for the recommended ISO 7638 diagnostics connection Note: Diagnostics via ISO 7638 CAN supported by EB+ since 05/2005 from ECU software B337 onwards, previous systems require a software upgrade via "DIAG" port
		814011001	Cable 6,5 m	USB Interface <-> ISO 7638 Interface Assembly or USB Interface <-> Side of vehicle socket (SOV)
		814036001	Cable 6,5 m	optional diagnostic connection via Haldex CAN bus: USB Interface <-> "DIAG" port EB+ Gen3
Separat bestellen		814001601	Cable 6,5 m	optional diagnostic connection via Haldex CAN bus: USB Interface <-> "Diag" port EB+ Gen1/Gen2
to order separately		844511065	Cable 6.5 m	For EB+ 4.0, to connect on H-CAN socket
950 800 909		815023001	USB / PC-Inferface (DIAG+ & DIAG++)	Only for registered and trained OEMs or workshops Required to set or modify an EB+Gen3 / U-ABS / EB+ 4.0 Supports: DTC reading/clearing ECU setup EOL Test ECU Flash Updates TPMS Sensor Setup FLEET+ V3 data saving only FLEET++ data saving only
950 800 909		042707309	USB Cable
950 800 910		815023011	USB / PC-Inferface (FLEET+ & FLEET++)	Supports : FLEET+ V3 software unlock, FLEET+ V3 data reading/saving FLEET++ DTC reading/clearing Does NOT support changing parameters of EB+ / U-ABS / EB+ 4.0
950 800 910		042707309	USB Cable
