DIAG+ offset setting for green == yellow
Because of equal offset settings the centre sensor can be linked to both channels alternatively. System will detect this automatically.

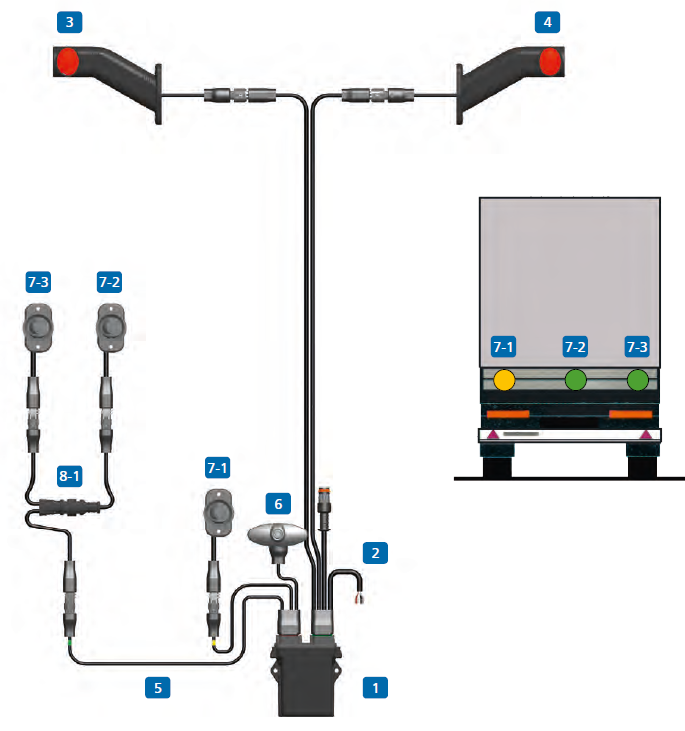

Item	Qty.	Description	Part No.	Notes
1	1	EB+ Soft Docking ECU	364 608 001
2	1	Outline marker lamp and brake cable	364 606 001	green connector on ECU
3	1	LED outline marker lamp (left)	364 617 001
4	1	LED outline marker lamp (right)	364 617 011
5	1	Sensor and audio beeper cable	364 605 001	brown connector on ECU
6	1	Audio beeper	364 616 001
7	3	Ultrasonic sensor	364 614 001
8-1	1	Sensor splitter cable	364 607 001	0.5 m / 0.5 m / 0.5 m
