EB+ CAN Hub cables

EB+ CAN Hub is located on the ISO7638 power line, between the socket or plug and EB+ ECU. An additional pressure sensor can be installed, using a specific cable. This exhaustive list gives you the possibility to find the right cable, with additional information like length, availability, diagnostic, and more!

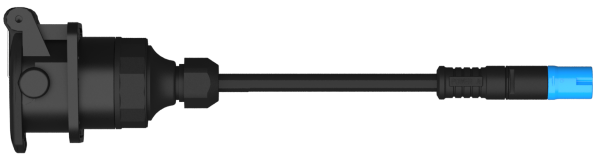

 ISO7638 to Power-A - Semitrailer

• ISO 7638 socket for semi trailer
• EB+ Power-A plug
• 7 pins

All variants fullfil ADR specifications

More information and diagnostic​​​​​​​

Part number	Length (m)	Technical drawing
814 003 152	6
814 003 132	9
814 003 102	12
814 003 142	14
814 003 112	16
814 003 122	18

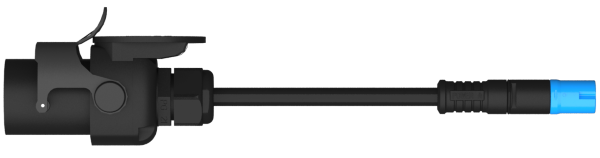

ISO7638 to Power-A - Trailer

• ISO 7638 plug
• EB+ Power-A plug
• 7 pins

All variants fullfil ADR specifications

More information and diagnostic​​​​​​​

Part number	Length (m)	Technical drawing
814 004 102	9
814 004 112	12
814 004 122	15

EB+ Gen3 Power-A to Power-A

• EB+ Power-A plug (2x)
• 7 pins

All variants fulfill ADR specifications

More information and diagnostic​​​​​​​

Part number	Length (m)	Technical drawing
814 042 031	1.8
814 042 021	8
814 042 041	26

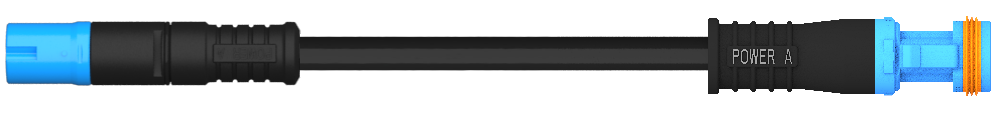

EB+ Gen3 Power-A to EB+ 4.0 Power-A (EB+ CAN Hub)

• EB+ Gen3 Power-A plug
• EB+ 4.0 Power-A / EB+ 4.0 Power-A plug
• 7 pins

All variants fulfill ADR specifications

More information and diagnostic​​​​​​​

Part number	Length (m)	Technical drawing
844121018	1.8
844121260	8

Pressure sensor/switch to AUX

• Pressure sensor/switch plug
• AUX plug

All variants fulfill ADR specifications

More information and diagnostic
