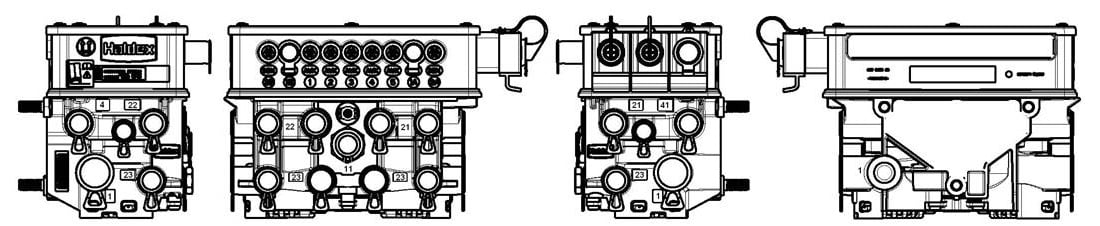

2M Gen2 with DCV, QRV and fittings
820 019 xxx
| ASSEMBLY 820 019 xxx [Base 820 019 001] | ||||
| Variant | 001 | 101 | 111 | 121 |
|---|---|---|---|---|
| Port Numbers | Thread | Dennison Cartwright |
Cartwright | Cartwright |
| 4-Side | ||||
| 4 Control Port | M16 | 8x1 Test | 8x1 Test | 8x1 Test |
| 1 Reservoir port | M22 | - | - | - |
| Test Port | M12 | Test | Test | Test |
| 22 Delivery port | M16 | 12x1.5 | - | 12x1.5 |
| 23 Spring Brake Port | M16 | 8x1 Test | - | - |
| Front | ||||
| 22 Delivery port | M16 | 12x1.5 | 12x1.5 | 12x1.5 |
| 22 Delivery port | M16 | 12x1.5 | 12x1.5 | 12x1.5 |
| 21 Delivery port | M16 | 12x1.5 | 12x1.5 | 12x1.5 |
| 21 Delivery port | M16 | 12x1.5 | 12x1.5 | 12x1.5 |
| 11 Anti Compounding Port | M16 | 8x1 | 8x1 | 8x1 |
| 23 Spring Brake Port | M16 | 8x1 | 8x1 | 8x1 |
| 23 Spring Brake Port | M16 | 8x1 | 8x1 | 8x1 |
| 23 Spring Brake Port | M16 | 8x1 | 8x1 | 8x1 |
| 23 Spring Brake Port | M16 | 8x1 | 8x1 | 8x1 |
| 41-Side | ||||
| 21 Delivery port | M16 | 12x1.5 | - | 12x1.5 |
| 23 Spring Brake Port | M16 | 8x1 | - | - |
| Test Port | M12 | - | - | - |
| 41 Air Suspension Port | M16 | 8x1 | 8x1 | 8x1 |
| 1 Reservoir port | M22 | 18x2 | 18x2 | 18x2 |
| Back | ||||
| 1 Reservoir port | Not Open | Not Open | Not Open | Not Open |
