DIAG Cable DIN
- Standard 5V CAN bus cable for connection of various telematic systems
- Conforms to IP67 (BS EN 60529) when mated with EB+ ECU (GEN1 / GEN2 only)
- Cable material: PVC, ADR approved
- ECU Connector: green
- Bayonet Connector: DIN 72585, ISO 15170-B1-4.1-Sn/K1
- Operating output: 24V, max 1.5 Amp
- Operating temperature: -40°C to +70°C

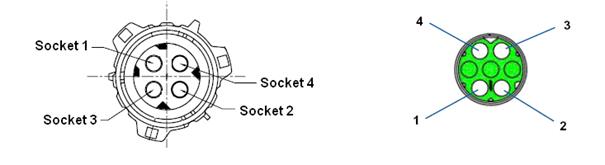

Connector (Top View)
Cable
| ECU Connector Socket | Function | DIN Plug Socket | Wire Colour | mm² |
| 1 | B + / 24V | 1 | Red | 0.75 |
| 2 | 5V CAN High | 3 | Green | 0.75 |
| 3 | 5V CAN Low | 4 | Yellow | 0.75 |
| 4 | B - | 2 | Blue | 0.75 |
