EB+ Info Centre Cable
- Connection cable for EB+ Info Centre
- Conforms to IP67 (BS EN 60529) when mated with EB+ ECU (GEN1 and GEN2 only) and EB+ Info Centre
- Cable material: PVC, ADR approved
- ECU Connector: green
- Info Centre Connector: black, 4 pole
- Operating output: 24V, max 1.5 Amp
- Operating temperature: -40°C to +70°C

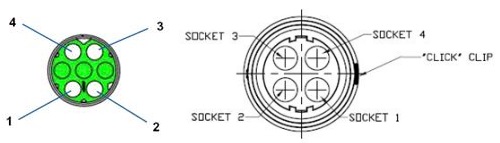

Connector (Top View)
Cable
| ECU Connector Socket | Function | Info Centre Plug Socket | Wire Colour | mm² |
| 1 | B + / 24V | 3 | red | 0.75 |
| 2 | 5V CAN high | 4 | green | 0.75 |
| 3 | 5V CAN low | 1 | yellow | 0.75 |
| 4 | B - | 2 | blue | 0.75 |
