Power supply adaptor cable for EB+ with DIN connector
Used in combination with standard front adapter cable
1.5 m and 4.5 m variant in standard cases, interface is here close to EB+ location,
12m variant in case where after EOL the supply cable has to be installed e.g. in the bottom of an elsewhere installed fridge box, or in case the customer wants to be able to replace the front socket easily without pulling the complete main cable out of the chassis.
Conforms to IP67 (BS EN 60529) when mated with EB+ and ISO Front Adaptor Cable
Cable material: PVC, ADR approved
ECU Connector: Blue
Connector: Black, DIN 72585, 7 pole
Operating voltage: 24V
Operating temperature: -40°C to +70°C

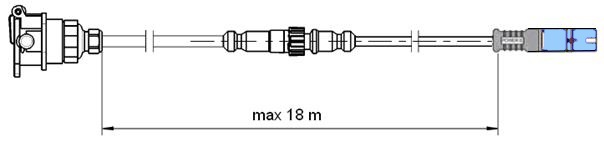

Installation Overview

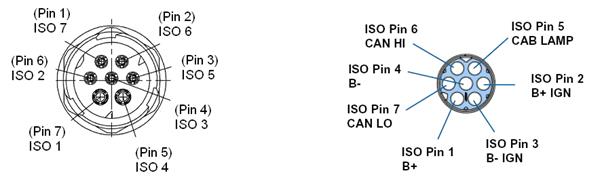

Connector (Top View)

Cable
