ISO Power Cable For Full Trailer
- Power supply cable with plug according to ISO7638 + CAN
- Conforms to IP67 (BS EN 60529) when mated with EB+ ECU (GEN1 / GEN2 / GEN3)
- Cable material: PVC, ADR approved
- ISO plug: black
- ECU connector: blue
- Operating voltage: 24V
- Operating temperature: - 40°C to + 70°C

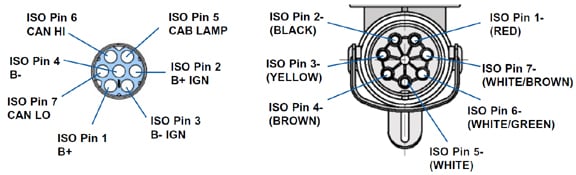

Connector (top view)
Cable details
|
ISO Pin |
Wire Colour |
Function |
mm² |
|---|---|---|---|
|
1 |
red |
B (+) |
4.0 |
|
2 |
black |
B (+) ignition |
1.5 |
|
3 |
yellow |
B (-) ignition |
1.5 |
|
4 |
brown |
B (-) |
4.0 |
|
5 |
white |
Cab lamp |
1.5 |
|
6 |
white / green |
CAN high |
1.5 |
|
7 |
white / brown |
CAN low |
1.5 |
