Picture Description Part No. Cable
Length		 CAD
844 351 070

Switchbox for EB+ 4.0
Including AUX cable

  • Push button
  • Can be used for the traction help function
  • Mounted in front of the chassis

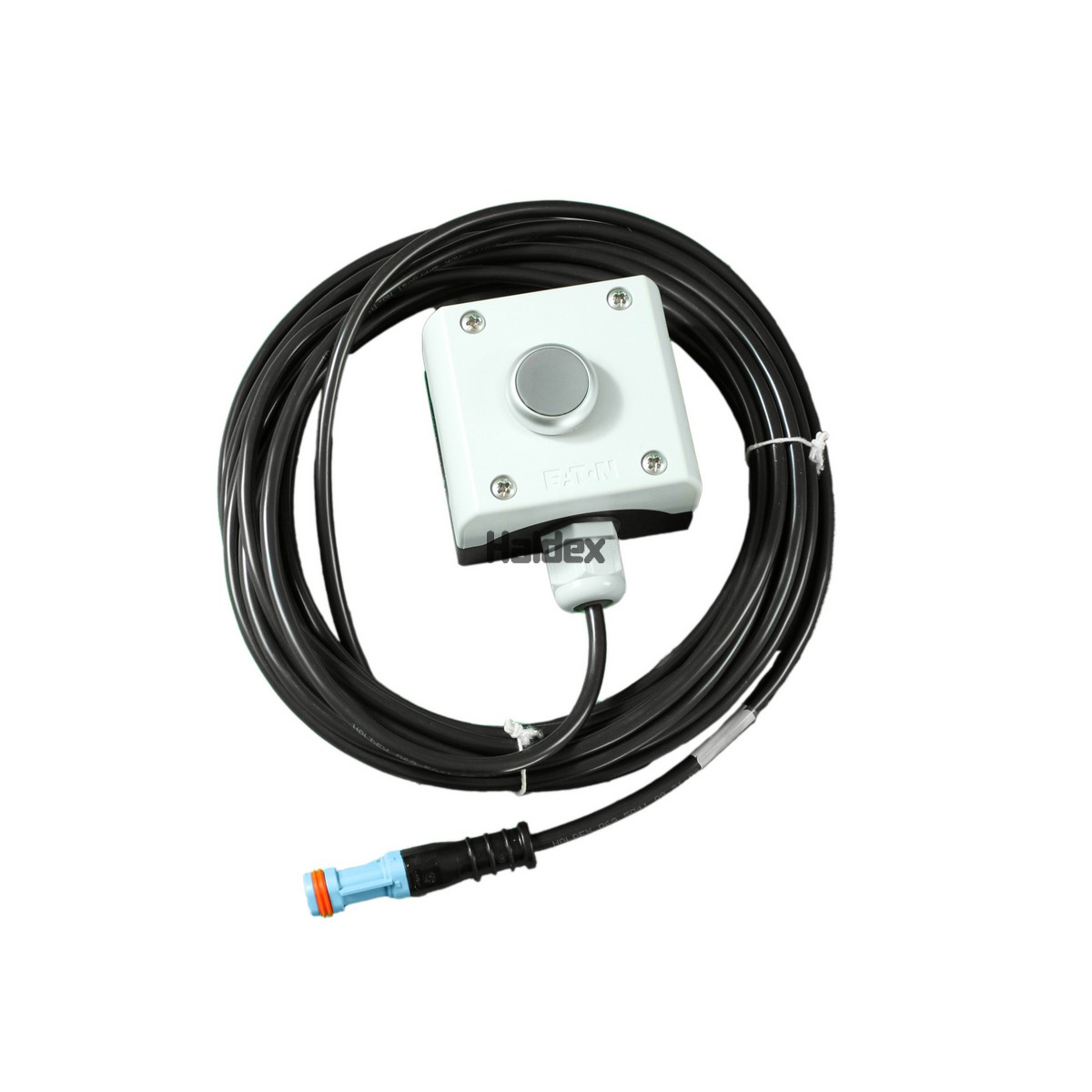

 844 351 070  7 m

Switchbox for EB+ 4.0
Including AUX cable

  • Push button
  • Can be used for the traction help function
  • Mounted behind the chassis

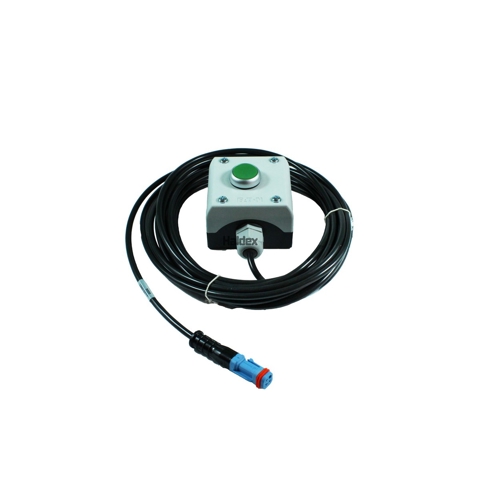

 844 352 070 7 m



  • Only for EB+ 4.0
  • Cable with EB+ AUX connector offering plug-and-play GPI function on AUX4 + AUX5
  • Note: GPI function allows to control an output function by an input signal, please refer to EB+ AUX features.
  • Mounting, cable outlet must show downwards
  • Protection class: IP59 conforming to IEC 60529





EB+ 4.0 Connector (Top View)



Connector
Socket		 Function Wire Colour mm²
1 +5V red 0.75
3 Output signal yellow 0.75
4 Not used black 0.75
