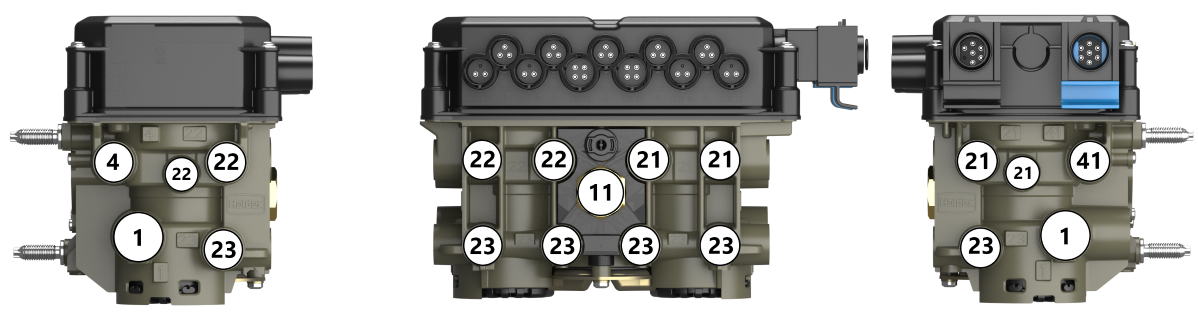

Gen3 3sides w port number 1200px.png

Variant	001	101	111	213	291
ASSEMBLY 823 008 xxx [Standard] ASSEMBLY 823 034 xxx [Premium]
Port Numbers	Thread	PTC *	PTC *	PTC *	PTC *
4-Side
4 Control Port	M16	8x1	8x1	8x1	8x1
1 Reservoir port	M22	15x1.5	15x1.5	16x2	15x1.5
Test Port	M12	-	8x1	-	-
22 Delivery port	M16	12x1.5	12x1.5	12x1.5	12x1.5
23 Spring Brake Port	M16	8x1	Plug	8x1	8x1
Front
22 Delivery port	M16	12x1.5	12x1.5	12x1.5	12x1.5
22 Delivery port	M16	12x1.5	12x1.5	12x1.5	12x1.5
21 Delivery port	M16	12x1.5	12x1.5	12x1.5	12x1.5
21 Delivery port	M16	12x1.5	12x1.5	12x1.5	12x1.5
11 Anti Compounding Port	M16	8x1	10x1	8x1	8x1
23 Spring Brake Port	M16	8x1	8x1	-	8x1
23 Spring Brake Port	M16	-	8x1	8x1	8x1
23 Spring Brake Port	M16	-	8x1	8x1	8x1
23 Spring Brake Port	M16	8x1	8x1	-	8x1
41-Side
21 Delivery port	M16	12x1.5	12x1.5	12x1.5	12x1.5
23 Spring Brake Port	M16	8x1	-	8x1	8x1
Test Port	M12	8x1	-	-	-
41 Air Suspension Port	M16	8x1	8x1	8x1	8x1
1 Reservoir port	M22	15.1.5	15x1.5	16x2	15x1.5
Back
1 Reservoir port	closed	closed	closed	closed	closed

*) PTC = Push to connect fittings, Ports without PTC are closed by a blind plug
