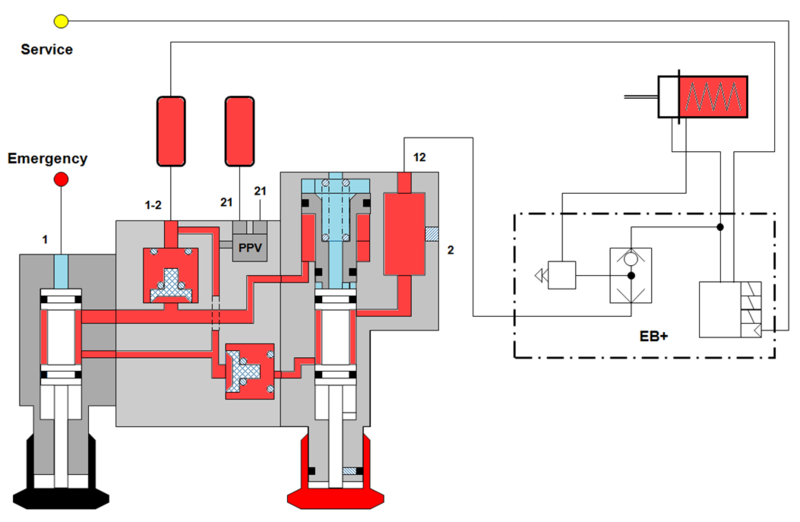

TEM - Maniobra paso 2
Sistema DESENGANCHADO, el pomo del aflojamiento ha sido pulsado
2º paso del aflojamiento: Pulsar el pomo de parking
¡Los frenos permanecen liberados si no se activan antes de volver a enganchar!
| Freno Servicio | Freno Parking | DCV (Prot. diferencial) |
ABS | Válvula Parking | Rebose |
|---|---|---|---|---|---|
| OFF ** | OFF | OFF | - | Posición de orden de marcha | Abierta |
** = ningún cambio
* In the Shunt position, vehicle can move without emergency function !!!
Always pull the red knob to apply park brake before to connect red coupling head !!!
!!! If not, No brakes will be applied when recoupling !!!
