Tools

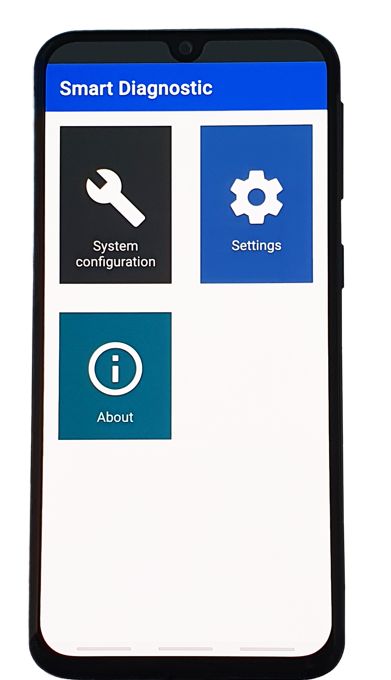

Smart DIAG Tool

The TPMS Smart diagnostic tool is a tool used to send a low-frequency (LF) trigger to the WUS. It is used to configure the system for the first time, writing the trailer configuration (number of wheels and axles), recommended pressure per axle, warning thresholds and WUS positions into the RCU.

Only for TPMS 2.0
For Android device (Smartphone/Tablet)
Not compatible with iOS
Requires Smart box
Configuration
TPMS fault codes reading
Sensor data reading (pressure/temperature/battery status/location)

Find the application on the software page

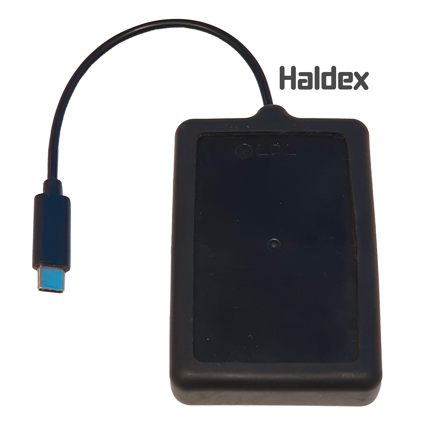

Smart Box

The TPMS 2.0 Smart Box is connected to the mobile phone and used to read the TPMS wheel sensor ID's.

815 063 001
USB-C (USB Micro-B adaptor included)
Protective rubber cover
