Cables EB
Aquí encontrará todos los "cables" EB+ básicos (para Gen1/2/3)
Po |
Descripción |
Referencia |
Longitud |
CAD |
Conector 1 en el EB+ |
Conector 2 |
|---|---|---|---|---|---|---|
| 01 |
|
814004102 | 9 m |
Power A, azul, |
ISO 7638, |
|
| 814004112 | 12 m | |||||
| 814004122 | 15 m | |||||
| 814004132 | 18 m | |||||
| 02 |
|
814003152 | 6 m |
Power A, azul, |
ISO 7638, |
|
| 814003132 | 9 m | |||||
| 814003102 | 12 m | |||||
| 814003142 | 14 m | |||||
| 814003112 | 16 m | |||||
| 814003122 | 18 m | |||||
| 03 |
|
814003201 | 1 m |
Conector DIN, |
ISO 7638, |
|
| 814003211 | 12 m | |||||
| 04 |
|
814026001 | 1.5 m | Power A, azul, conector hembra 7 polos |
Conecto DIN |
|
| 814026011 | 4.5 m | |||||
| 814026021 | 12 m | |||||
| 10 |
|
814002232 | 4 m |
Power B, |
Cable pelado 2 hilos, |
|
| 814002222 | 6 m | |||||
| 814002242 | 9 m | |||||
| 814002202 | 12 m | |||||
| 814002212 | 16 m | |||||
| 21 |
|
814002341 | 1 m |
Power B, |
Cable pelado 6 hilos, Blanco = B- (24N)Rojo = Luz de freno Negro = Salida 24V Amarillo = Entrada A Marrón = Entrada B Verde = Entrada C
|
|
| 814002331 | 4 m | |||||
| 814002301 | 6 m | |||||
| 814002321 | 9 m | |||||
| 814002311 | 12 m | |||||
| 22 |
|
814004301 | 1 m |
Power B, |
Conector DIN 72585 |
|
| 814004311 | 6 m | |||||
| 23 |
|
814029001 | A = 1 m
B = 1 m |
Power B, |
Conector DIN 72585 (A) Conector sensor (B) |
|
| 814029011 | A = 6 m
B = 5 m |
|||||
| 814029021 | A = 6 m
B = 1 m |
|||||
| 24 |
|
814029101 | A = 6 m
B = 2 m |
Power B, negro, 7 polos |
Conector ISO 15170 (A) Hembra Pin 1 = Entrada C Pin 2 = Salida 24V Pin 3 = No usado Pin 4 = No usado
|
|
| 31 |
|
003931609 | 1 m |
Diag, |
Cable pelado 4 hilos |
|
| 003898709 | 6.5 m | |||||
| 003899609 | 12 m | |||||
| 32a |
Conector al lateral del vehículo para Info Centre o DIAG+
|
814010111 | 2.5 m |
Diag, |
Conector Framatone |
|
| 814010121 | 5 m | |||||
| 814010101 | 6.5 m | |||||
| 814010131 | 15 m | |||||
| 32b |
Conector al lateral del vehículo para Info Centre o DIAG+
|
814030011 | 2.5 m |
EB+ CAN II, |
Conector Framatone |
|
| 814030021 | 5 m | |||||
| 814030001 | 6.5 m | |||||
| 814030031 | 15 m | |||||
| 33a |
Conector DIN-Bayoneta Productos CAN de terceros como telemática
|
814006301 | 1 m |
Diag, |
Conector DIN 72585 |
|
| 814006311 | 12 m | |||||
| 33b |
CAN Cable DIN Conector DIN-Bayonet Productos CAN de terceros como telemática
|
814033001 | 1 m |
|
EB+ CAN II, |
Conector DIN 72585 |
| 814033011 | 12 m | |||||
| 34a |
Info Centre EB+ / Cable extensión CAN
|
814019011 | 1.5 m |
Diag, |
EB+ CAN II |
|
| 814019001 | 6.5 m | |||||
| 814019021 | 8 m | |||||
| 814019031 | 14 m | |||||
| 34b |
Info Centre EB+ / Cable extensión CAN
|
814037011 | 0.5 m |
EB+ CAN II, |
EB+ CAN II, |
|
| 814037051 | 1.0 m | |||||
| 814037041 | 2.5 m | |||||
| 814037001 | 6.5 m | |||||
| 814037021 | 8 m | |||||
| 814037031 | 14 m | |||||
| 35 |
Conector al lateral del vehículo (SOV) |
814025001 | 1 m |
Conector Framatone |
EB+ CAN II, |
|
| 36 |

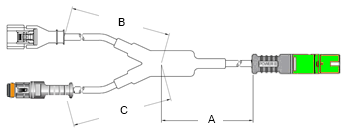

Cable distribuidor TPMS (EB+ / IC / RCU)
|
814031001 | A = 1.0 m
B = 1.2 m C = 5.5 m |
Diag, |
EB+ CAN II, |
|
| 37 |
Cable distribuidor CAN |
814038001 | 0.5 m |
Todos |
||
| 38 |
Cable CAN RCU TPMS (Trasero – Sin terminación) |
814040001 | 1.2 m |
EB+ CAN II, |
RCU – Conector FCI | |
| 39 |
Cable CAN RCU TPMS (Delantero – Sin terminación) |
814040101 | 1.2 m |
EB+ CAN II, |
RCU – Conector FCI | |
| 40 |
Cable CAN RCU TPMS (Delantero - Terminado) |
814040201 | 1.2 m |
EB+ CAN II, |
RCU – Conector FCI |
|
| 814040211 | 6 m | |||||
| 814040221 | 10 m | |||||
| 41 |
Cable de sensor de velocidad de rueda |
814004421 | 2 m |
Sensor, |
Sensor velocidad de rueda, |
|
| 814004401 | 3 m | |||||
| 814004471 | 4 m | |||||
| 814004411 | 6 m | |||||
| 814004451 | 8 m | |||||
| 814004431 | 10 m | |||||
| 814004461 | 12 m | |||||
| 814004441 | 14 m | |||||
| 51 |
|
814001342 | 1 m |
AUX, |
Rojo = Salida 5/24 V Negro = B- Amarillo = Señal entrada |
|
| 814001322 | 2 m | |||||
| 814001332 | 4 m | |||||
| 814001302 | 7 m | |||||
| 814001372 | 10 m | |||||
| 814001352 | 12 m | |||||
| 364531011 | 16 m | |||||
| 814001312 | 18 m | |||||
| 364531001 | 20 m | |||||
| 52 |
COLAS, ILAS-E, Electroválvula, Sensor de altura DIN 72585 |
814012221 | 1 m |
AUX, |
DIN 72585 |
|
| 814012231 | 2 m | |||||
| 814012251 | 3 m | |||||
| 814012261 | 4 m | |||||
| 814012241 | 5 m | |||||
| 814012201 | 7 m | |||||
| 814012271 | 10 m | |||||
| 814012211 | 18 m | |||||
| 53 |
(2x COLAS RTR, 2x ILAS-E Front) |
814027001 | A = 0.5 m
B = 0.5 m |
DIN 72585 |
DIN 72585 (A) DIN 72585 (B) |
|
| 55a |
(2 different features on ONE Aux) |
814028001 | A = 0.5 m
B = 0.5 m |
DIN 72585 |
DIN 72585 (A) DIN 72585 (B) |
|
| 814028011 | A = 4 m
B = 2 m |
|||||
| 55b |
Universal AUX Splitter (2 funciones diferentes en un solo Aux) |
814039001 | 0.5 m |
Todos |
||
| 56 |
Pressure Sensor / Switch Cable
ej. Sensor de línea de control adicional |
814001522 | 0.75 m |
AUX - PSW, |
Conector sensor de presión |
|
| 814001512 | 2 m | |||||
| 814001532 | 3 m | |||||
| 814001542 | 5 m | |||||
| 814001552 | 8 m | |||||
| 814001502 | 10 m | |||||
| 814001562 | 26 m | |||||
| 57 |
Aux to Aux cable Para EB+ PREMIUM en combinación con el distribuidor AUX Universal |
814032001 | 1 m |
AUX, |
AUX, |
|
| 814032011 | 4 m | |||||
| 814032021 | 7 m | |||||
| 814032031 | 18 m | |||||
| 71a |
3M Master Válvula esclava
|
814001012 | 2 m |
3M, |
3M, |
|
| 814001022 | 5 m | |||||
| 814001052 | 8 m | |||||
| 814001042 | 10 m | |||||
| 814001002 | 12 m | |||||
| 814001032 | 14 m | |||||
| 71b |
3M Master Válvula esclava
|
814041011 | 2 m |
3M, |
3M, |
|
| 814041021 | 5 m | |||||
| 814041051 | 8 m | |||||
| 814041041 | 10 m | |||||
| 814041001 | 12 m | |||||
| 814041031 | 14 m | |||||
| 81 |
CAN Repeater Dolly Cable (ABS)
CAN Repeater Dolly EBS Valve (5 pole) NO CAN Communication! |
814018301 | 2 m |
Power A, |
Power B, Morado, Repeater Female, 5 polos |
|
| 814018311 | 5 m | |||||
| 814018321 | 8 m | |||||
| 814018331 | 10 m | |||||
| 814018341 | 12 m | |||||
| 814018351 | 14 m | |||||
| 82 |
CAN Repeater Link Cable (EBS)
CAN Repeater EBS Valve (7 pole) Long Trailer |
814017301 | 10 m |
Power A, |
Power B, |
|
| 814017311 | 20 m | |||||
| 814017321 | 40 m | |||||
| 83 |
CAN Repeater Link Socket (EBS) Power supply cable with Socket according |
Xxx yyy zzz |
Power B, |
ISO 7638 |
solo para for EB+ GEN1/2
para EB+ GEN3
